CD 300

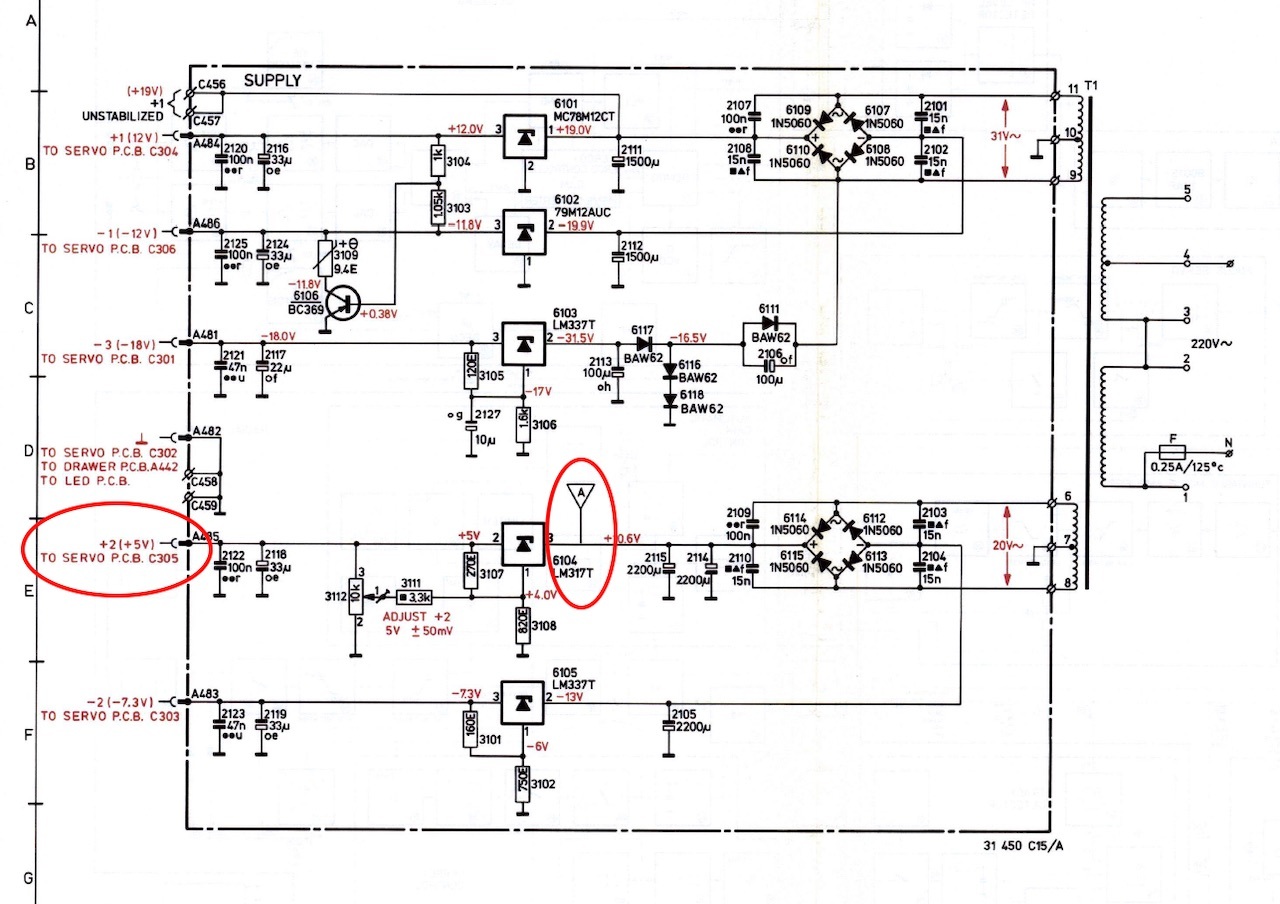

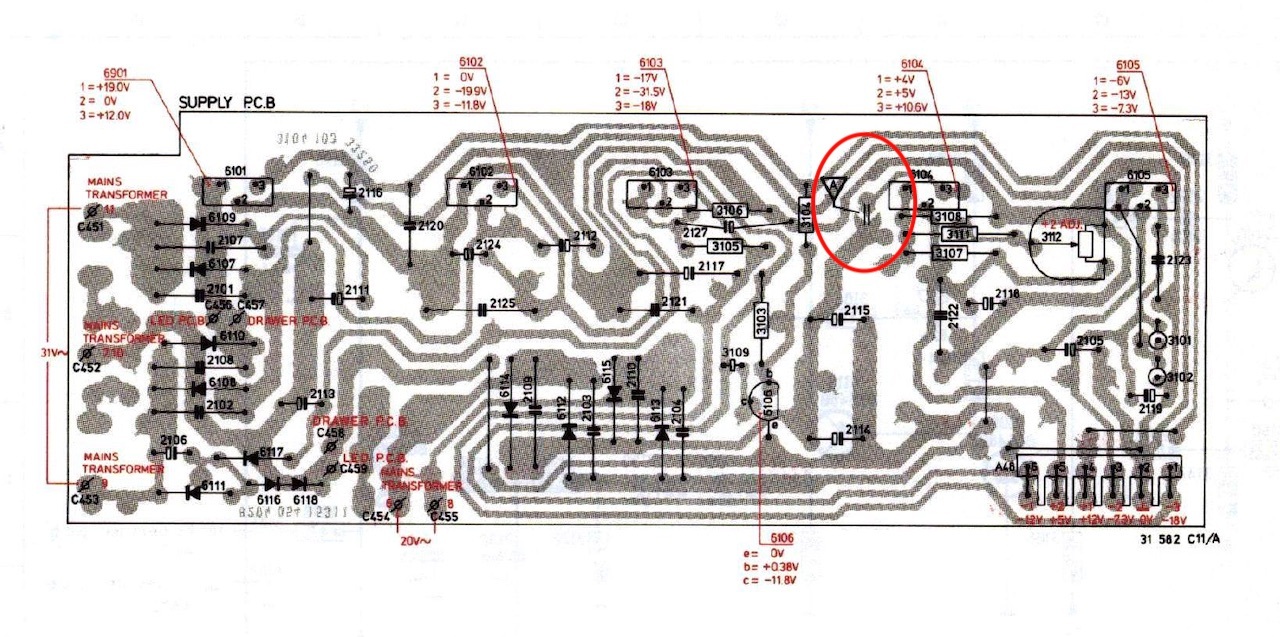

5 volt  is missing , jumper is removed ..

There is some life after fixing 5 volt 🙂

And it is reading T.O.C

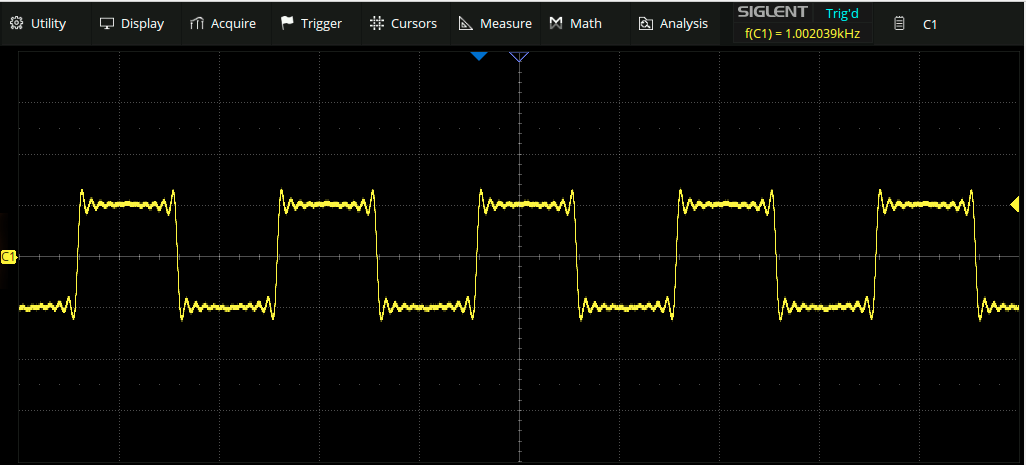

Only on 1 channel a distorted 1 kHz Square wave instead of 1 1 kHz at -30 dBfs

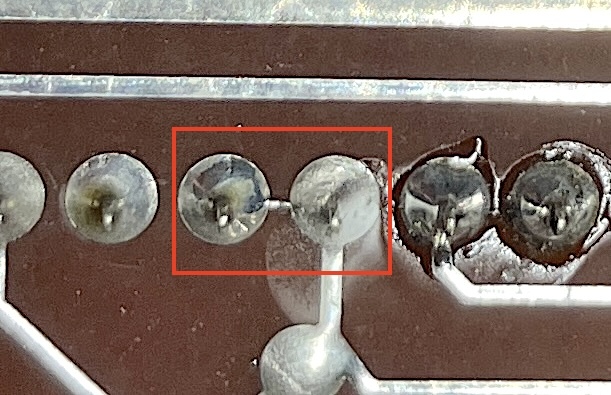

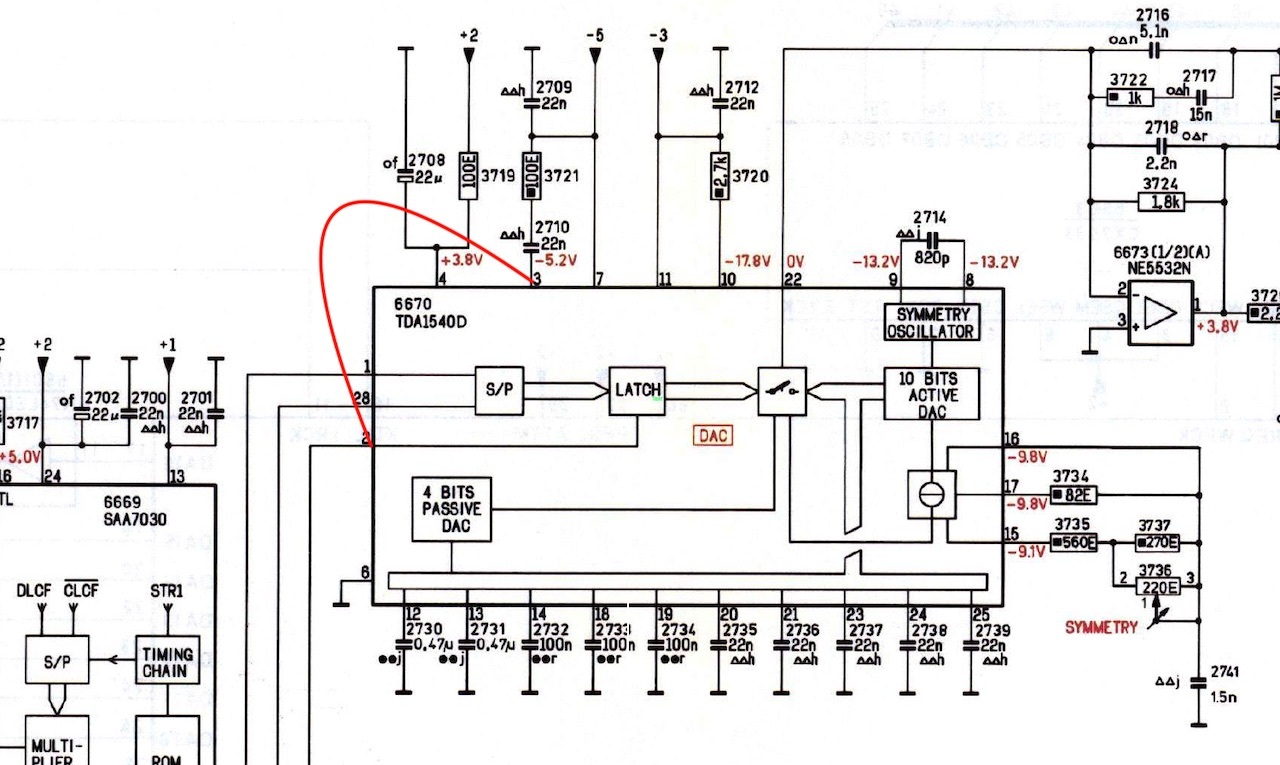

Pin 2 and 3 on TDA1540 shorted

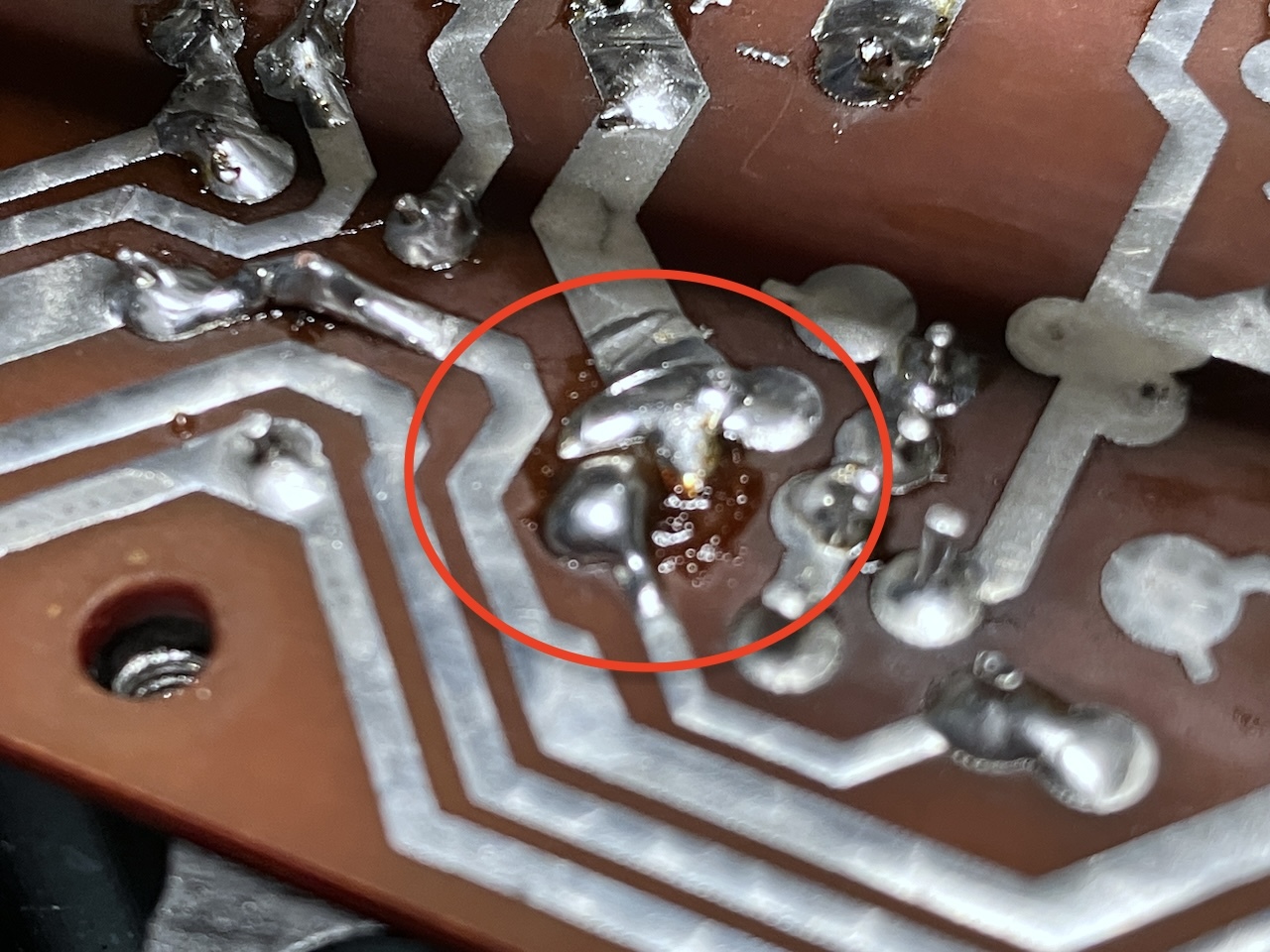

Short on SAA7030

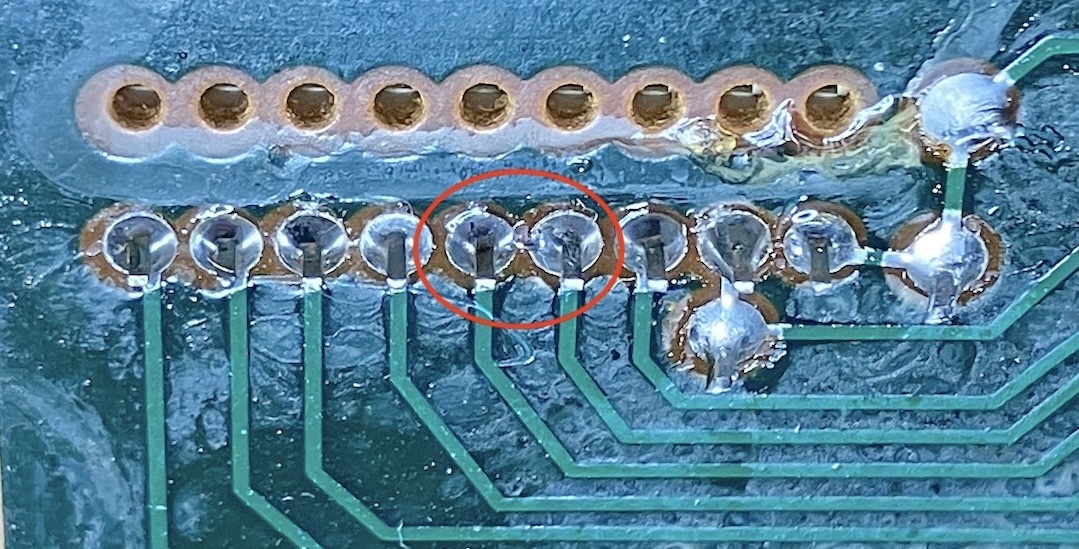

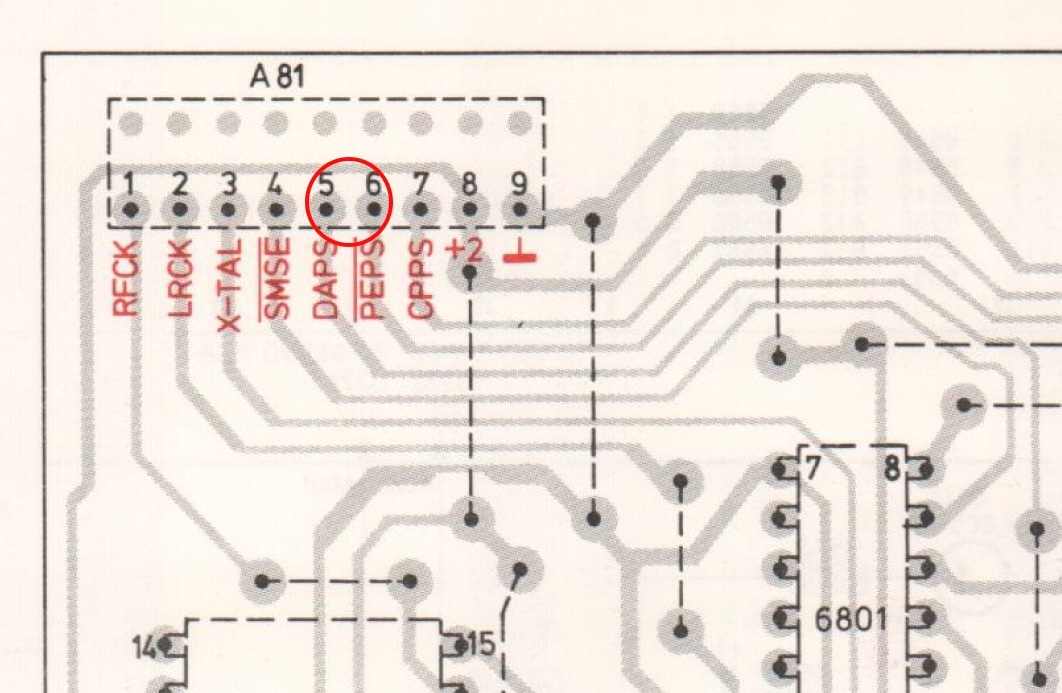

And a short on SoPhi adapter board pins 5 & 6

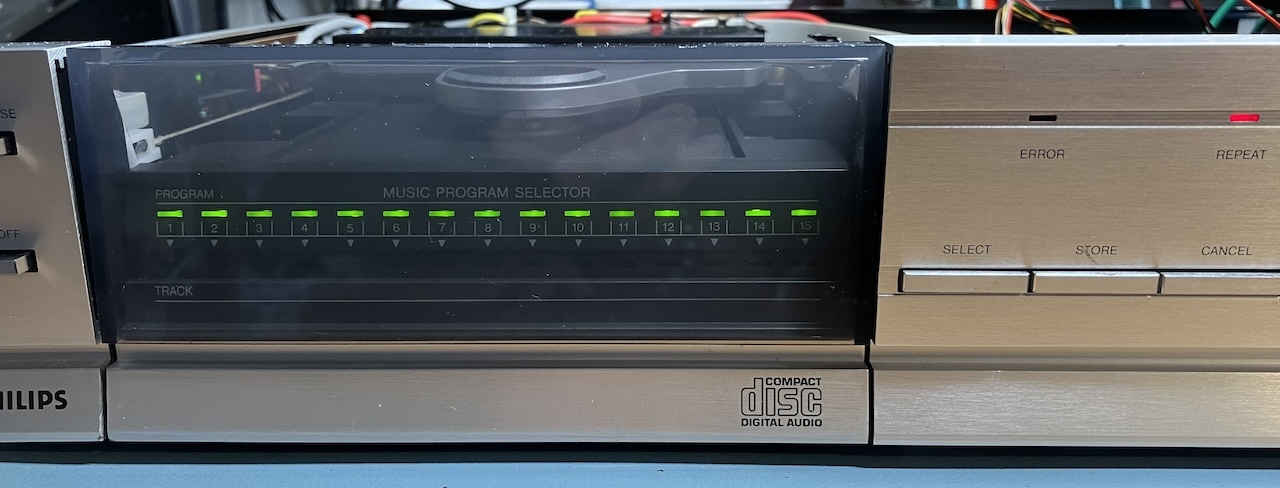

CD 300 – “Bedankt, de speler speelt helemaal top.  Groetjes,  Henk”
