CD 100 Repair

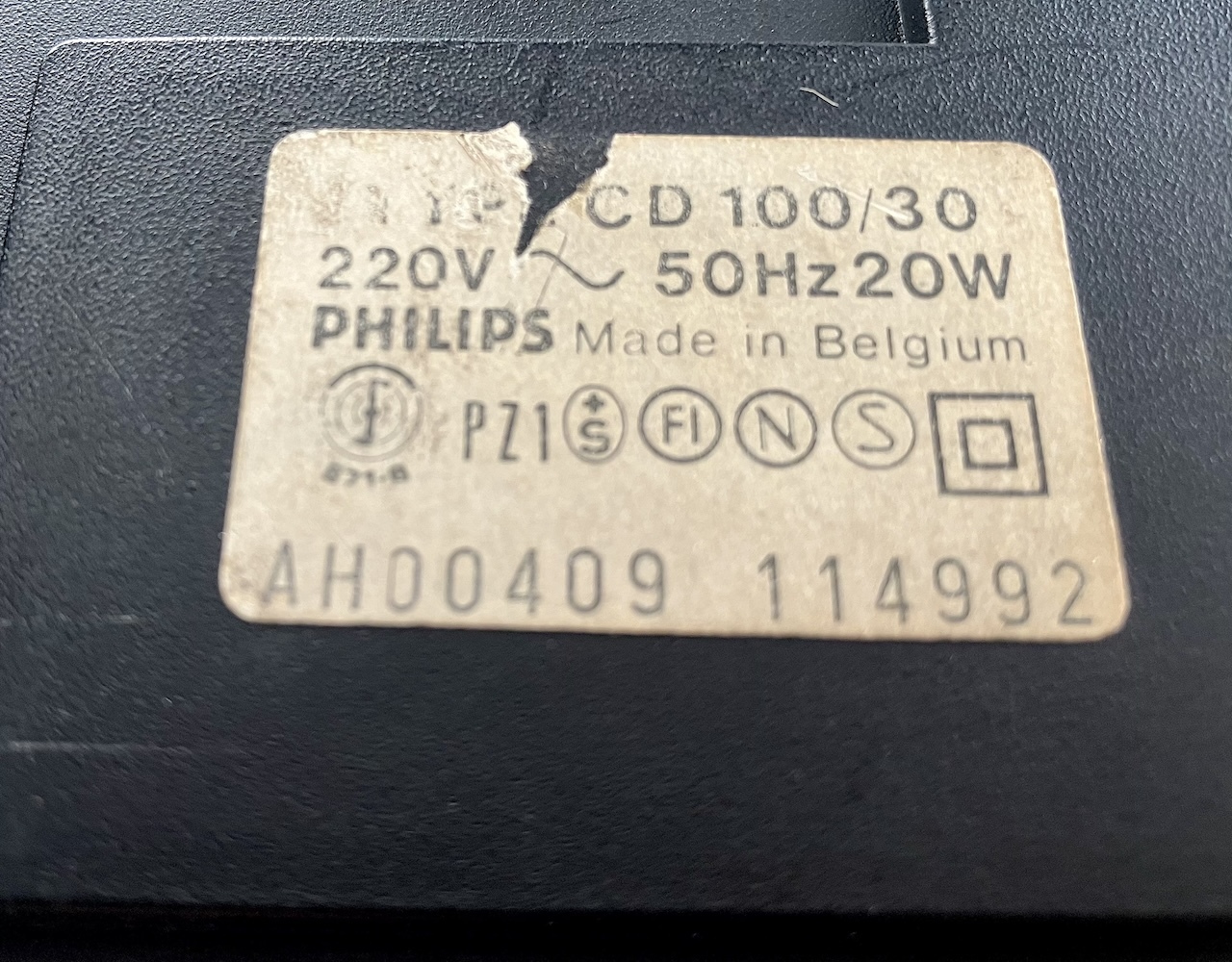

This CD100/30  : 1984 week 9 is something else..?! , it’s not working and when the disc is spinning it creaties mechnical noise.

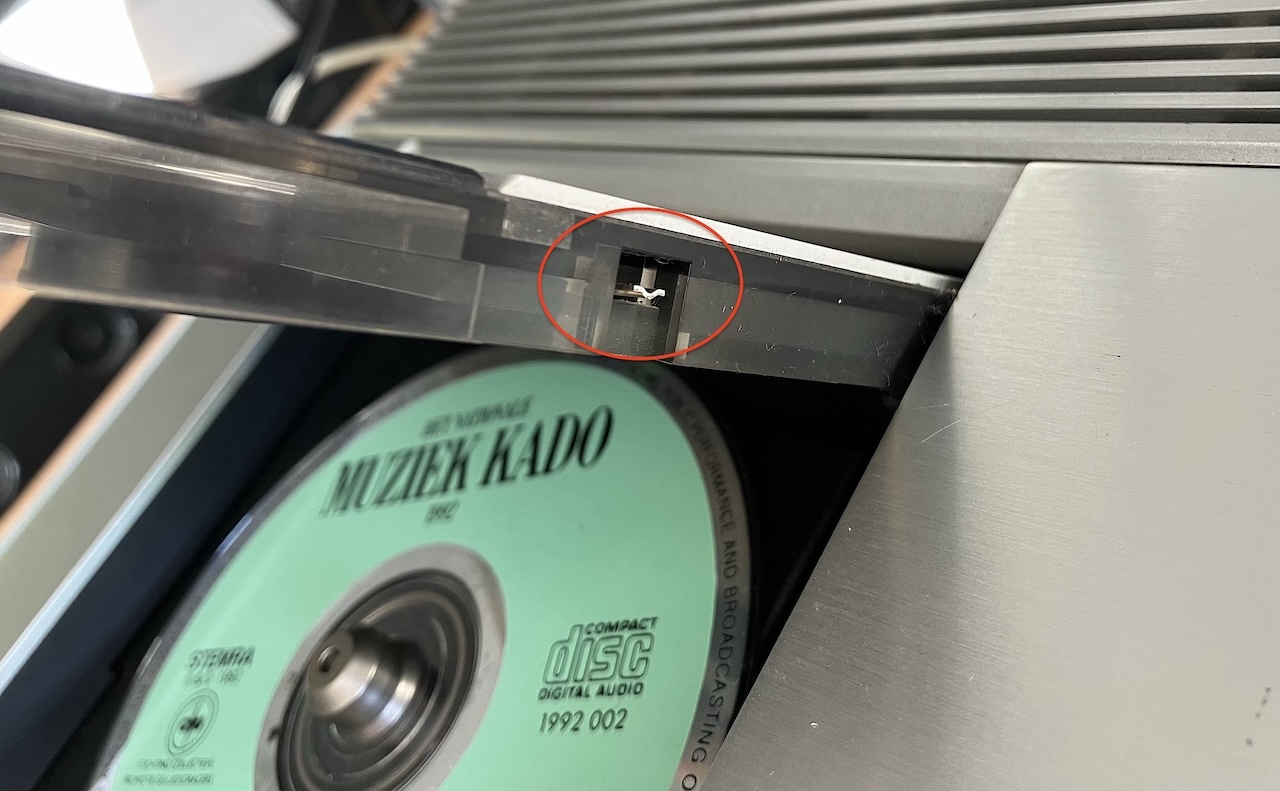

The noise is caused by a Brake used in early CD 100  – A record-disc player comprising a braking mechanism for braking a Disc

More info CD 100 Running Noise

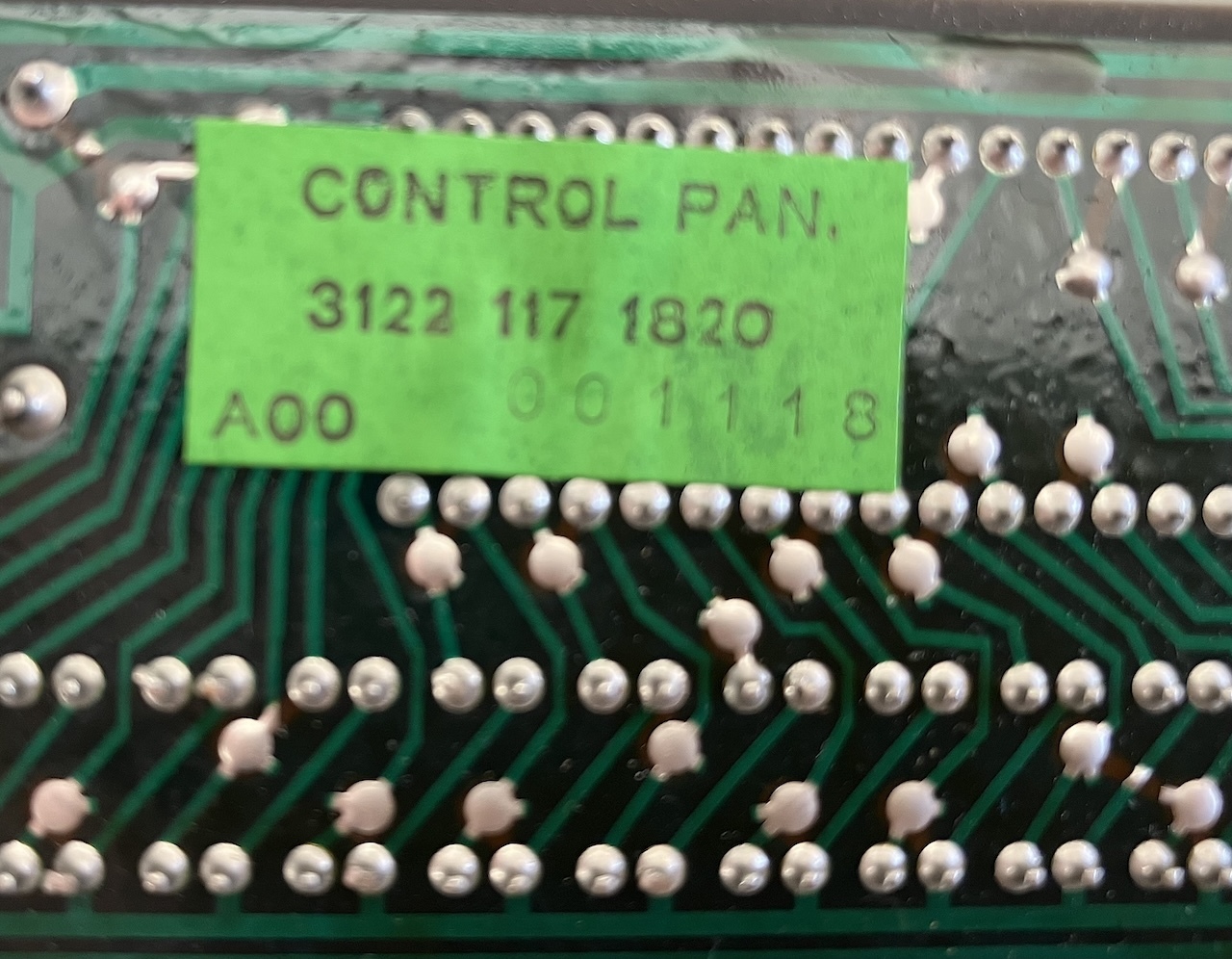

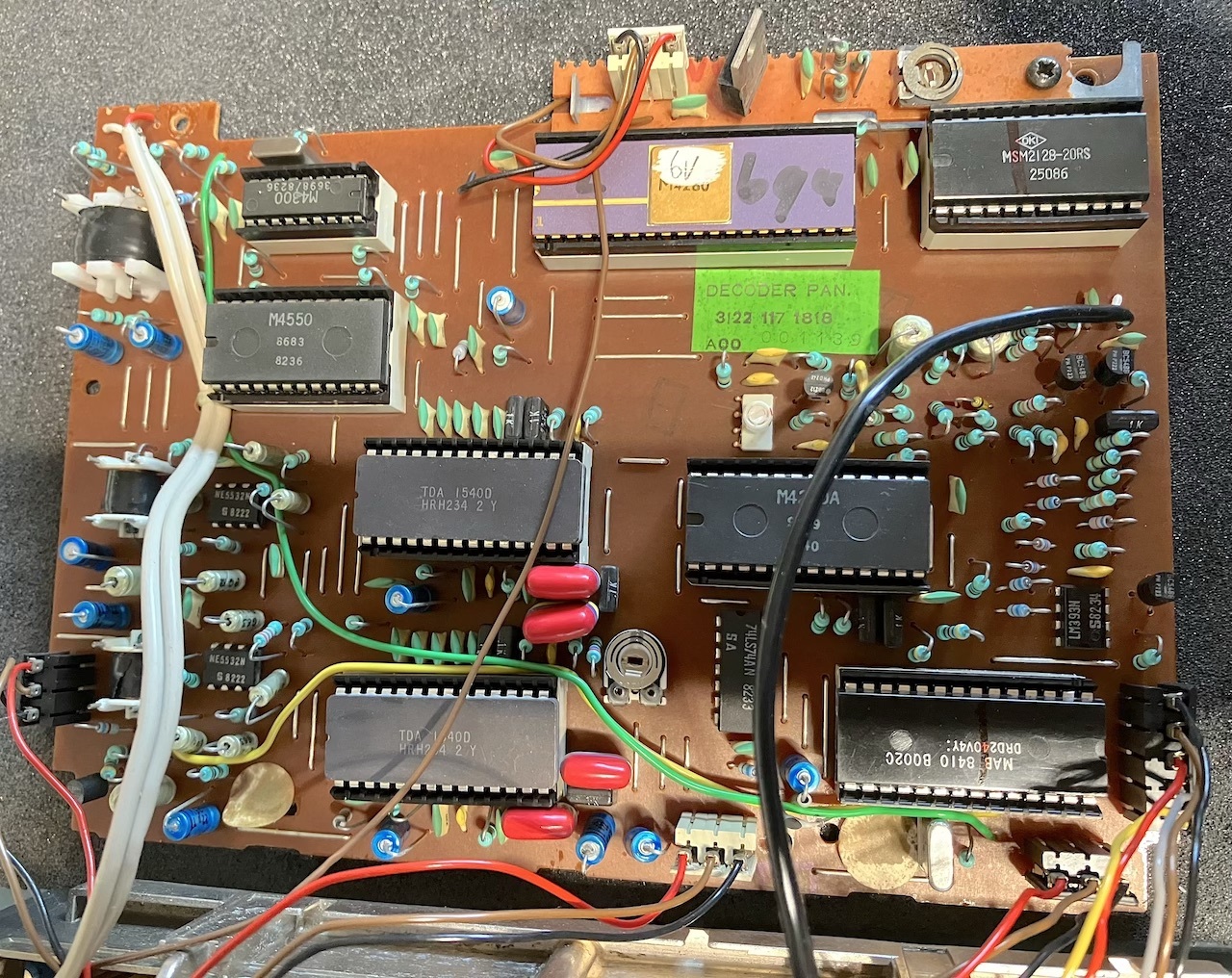

A00 circuitboards

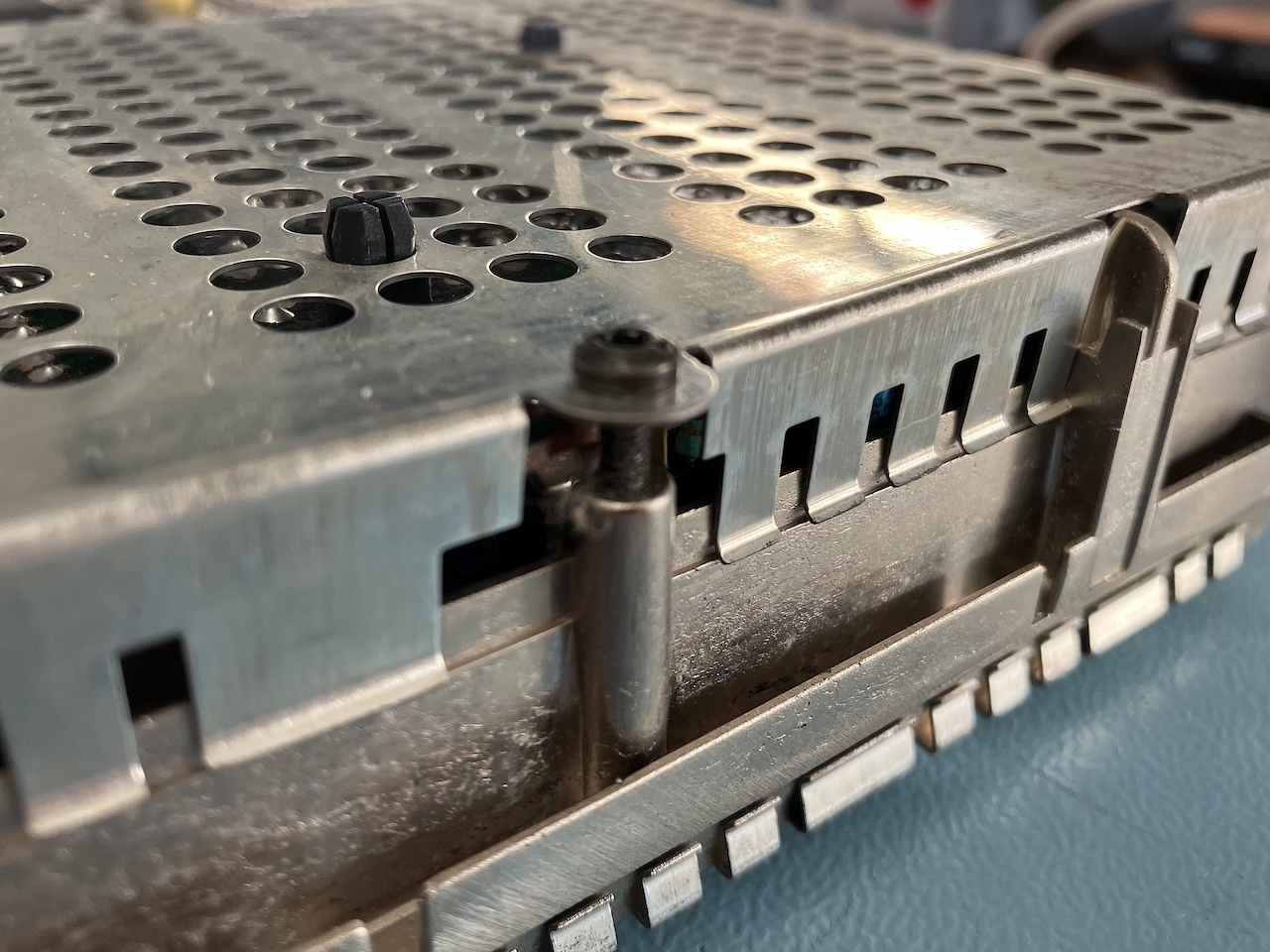

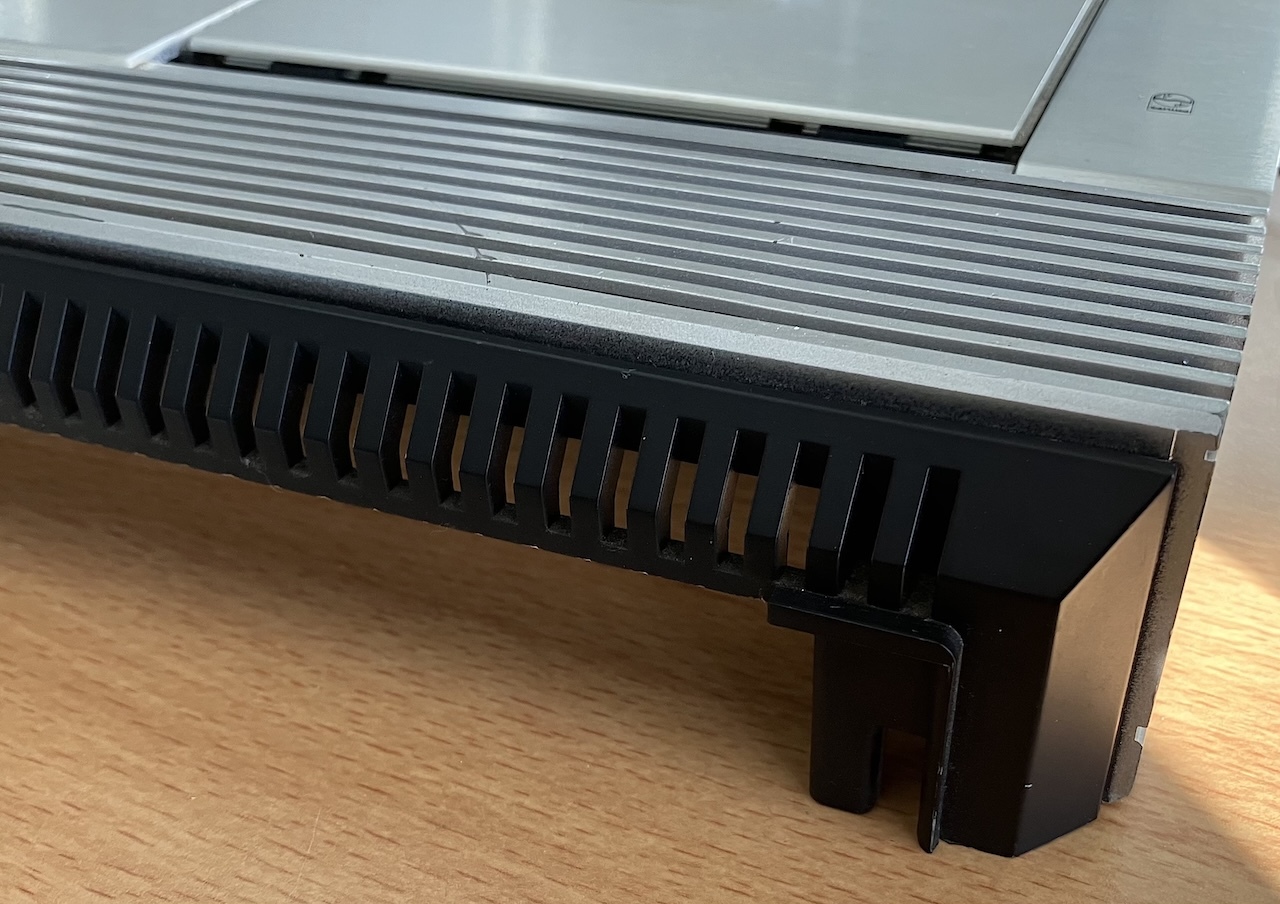

Black back plate

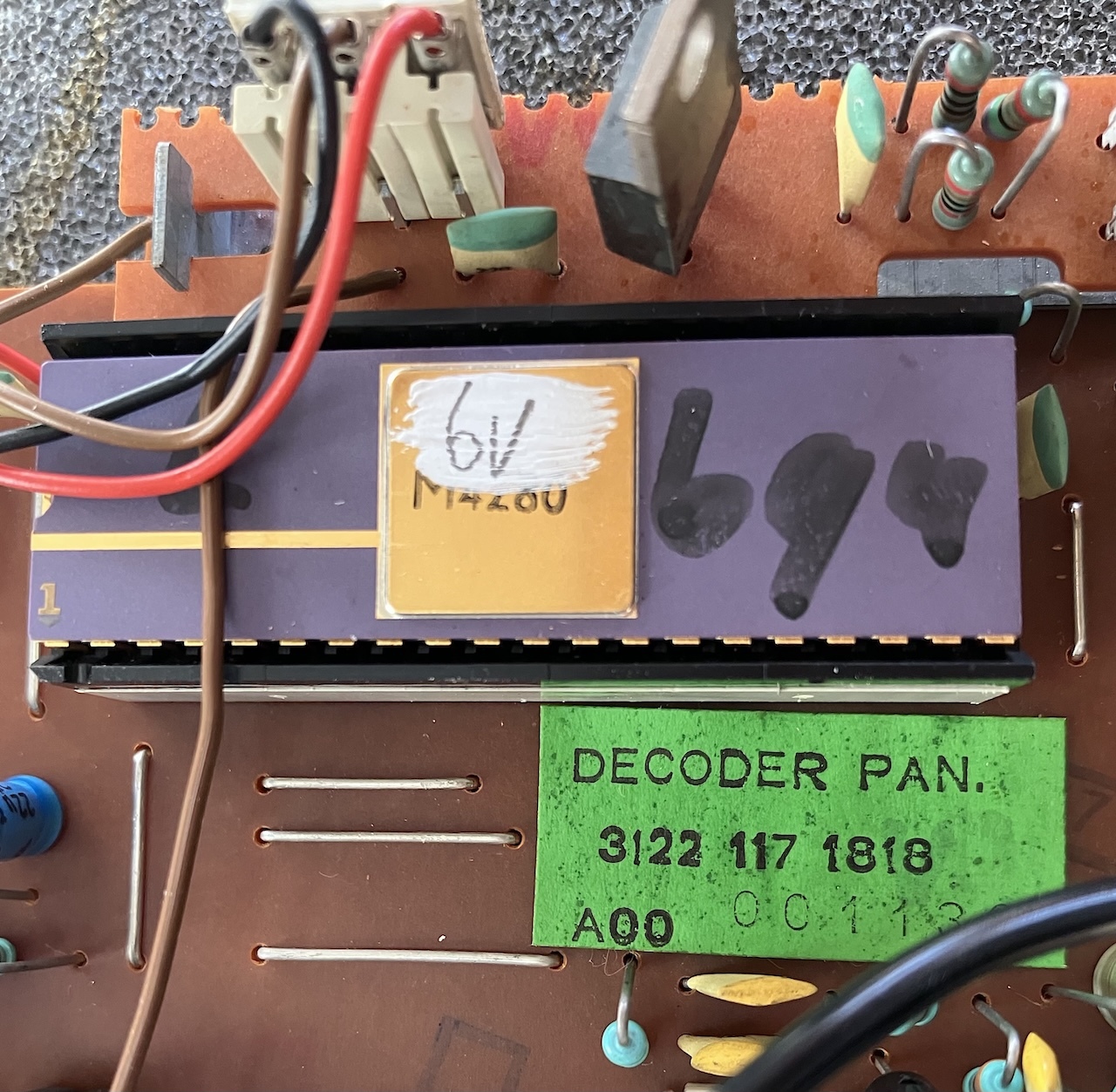

Early SAA7020 demodulator

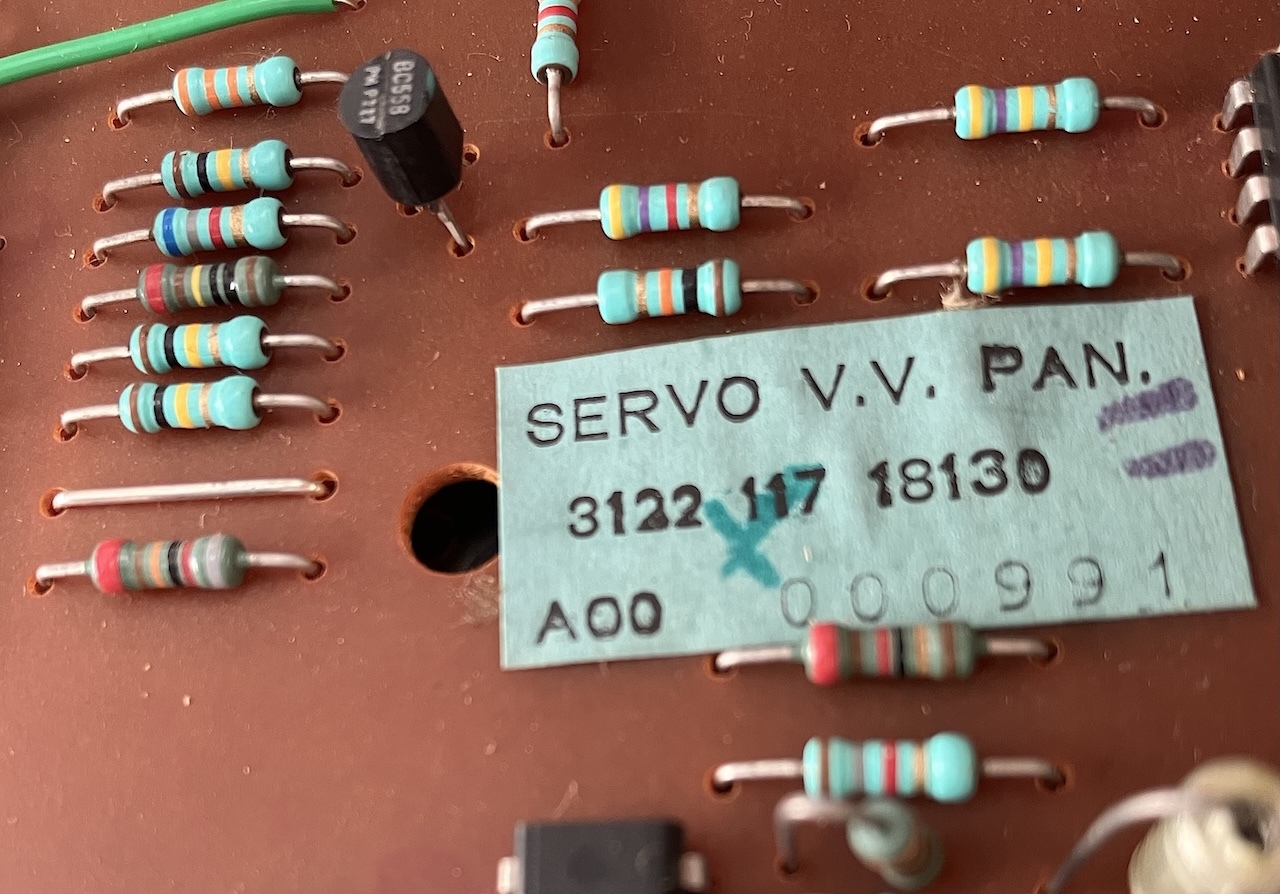

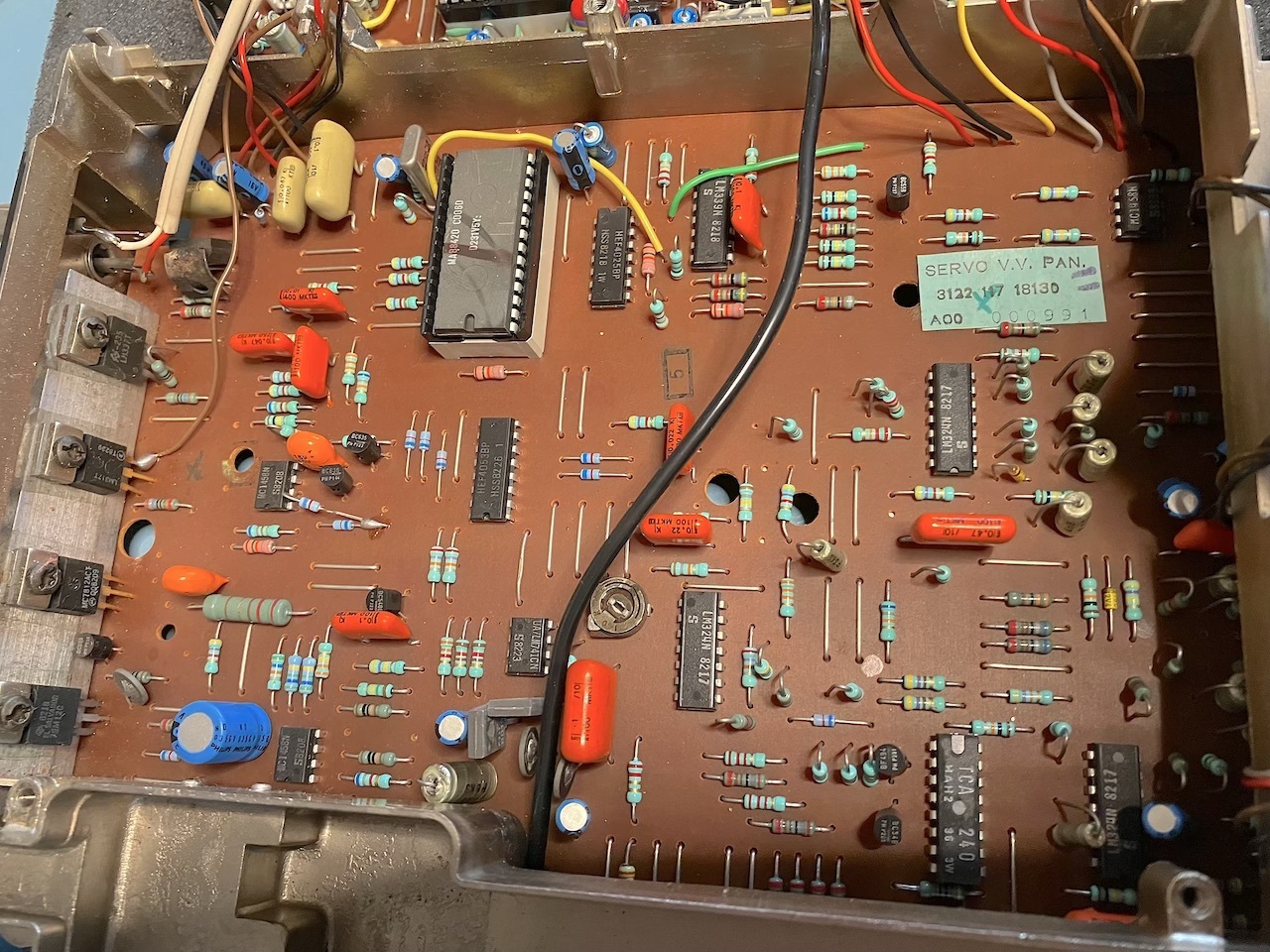

A00 Version Servoboard

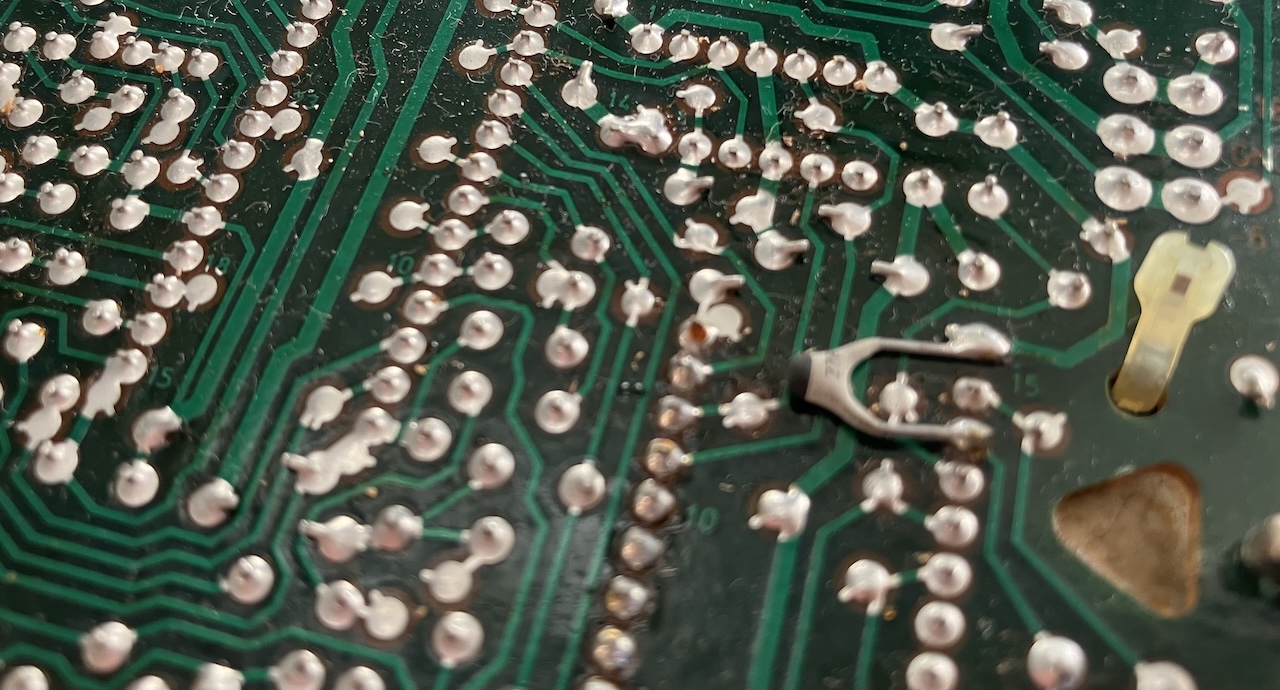

27pF capicitor by x-tal.

Early IC’s all week 1982

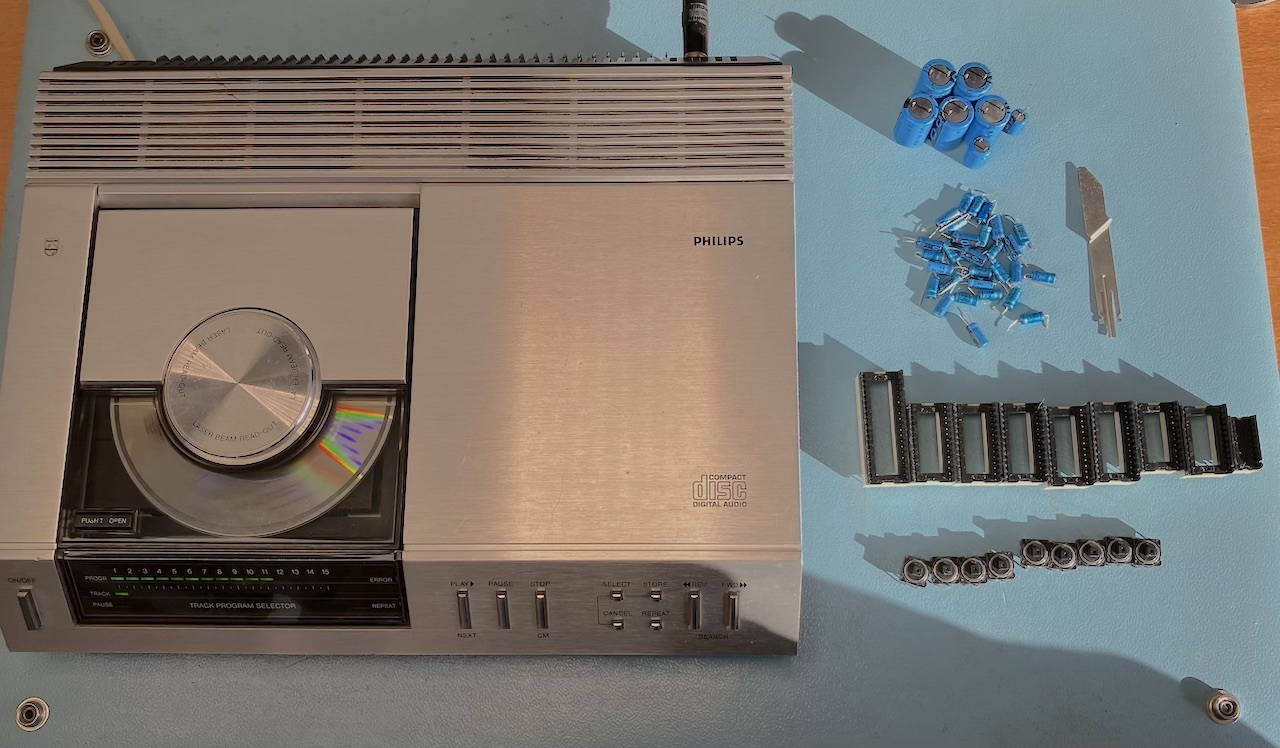

Removed the brake , replace bad capicitors and IC pockets
