Elektuur “The Audio DAC” PCM 63 – 1992

My diy build 1992 😉

Replaced YM3623 en DF1700 with WM8804 and DF1704(6) , the DAC can now work with 24 bits spdif 😉

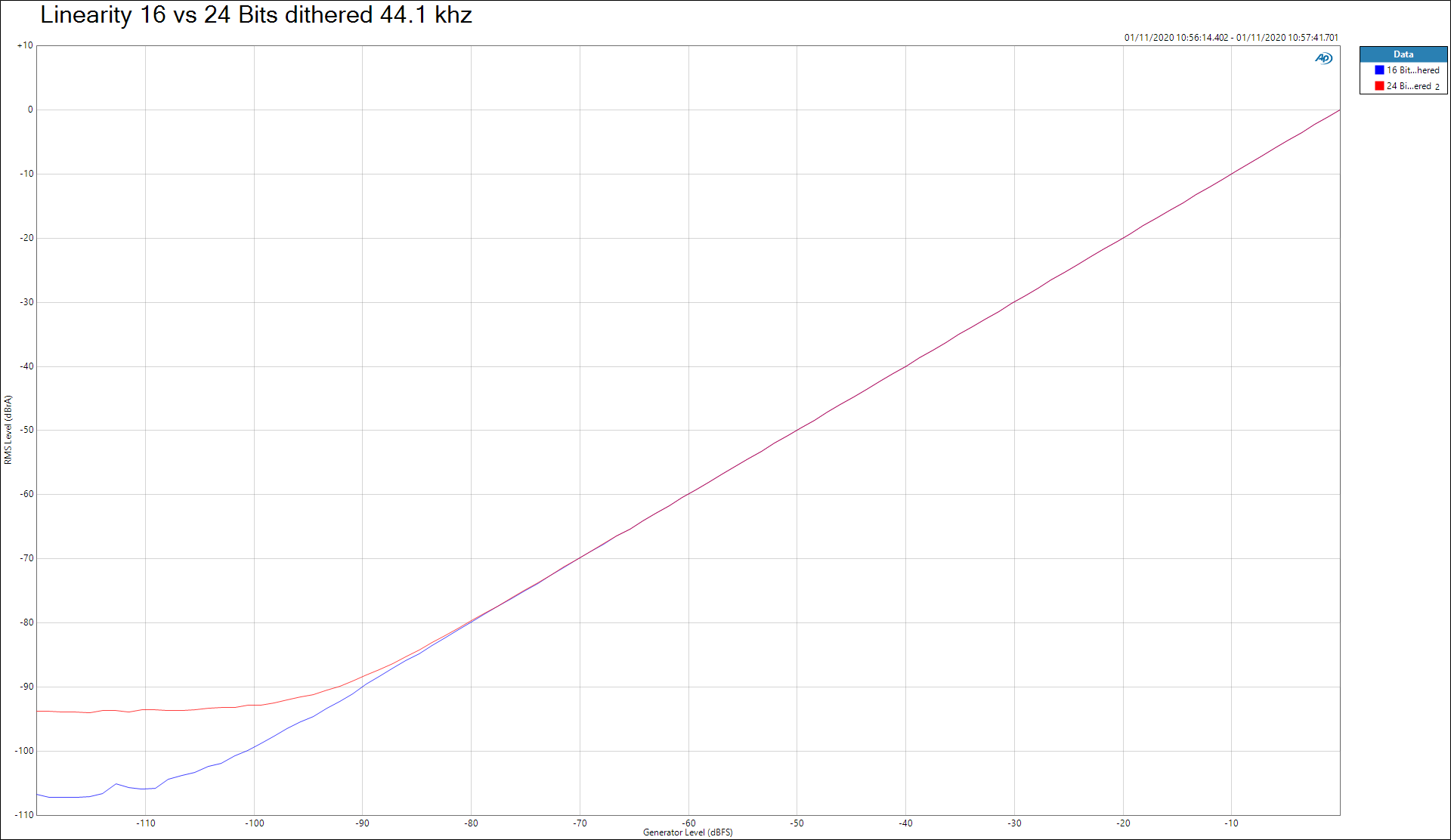

Linearity 16 bits vs 24 Bits spdif input

20 bits mode dithered , oeps wrong title in graph

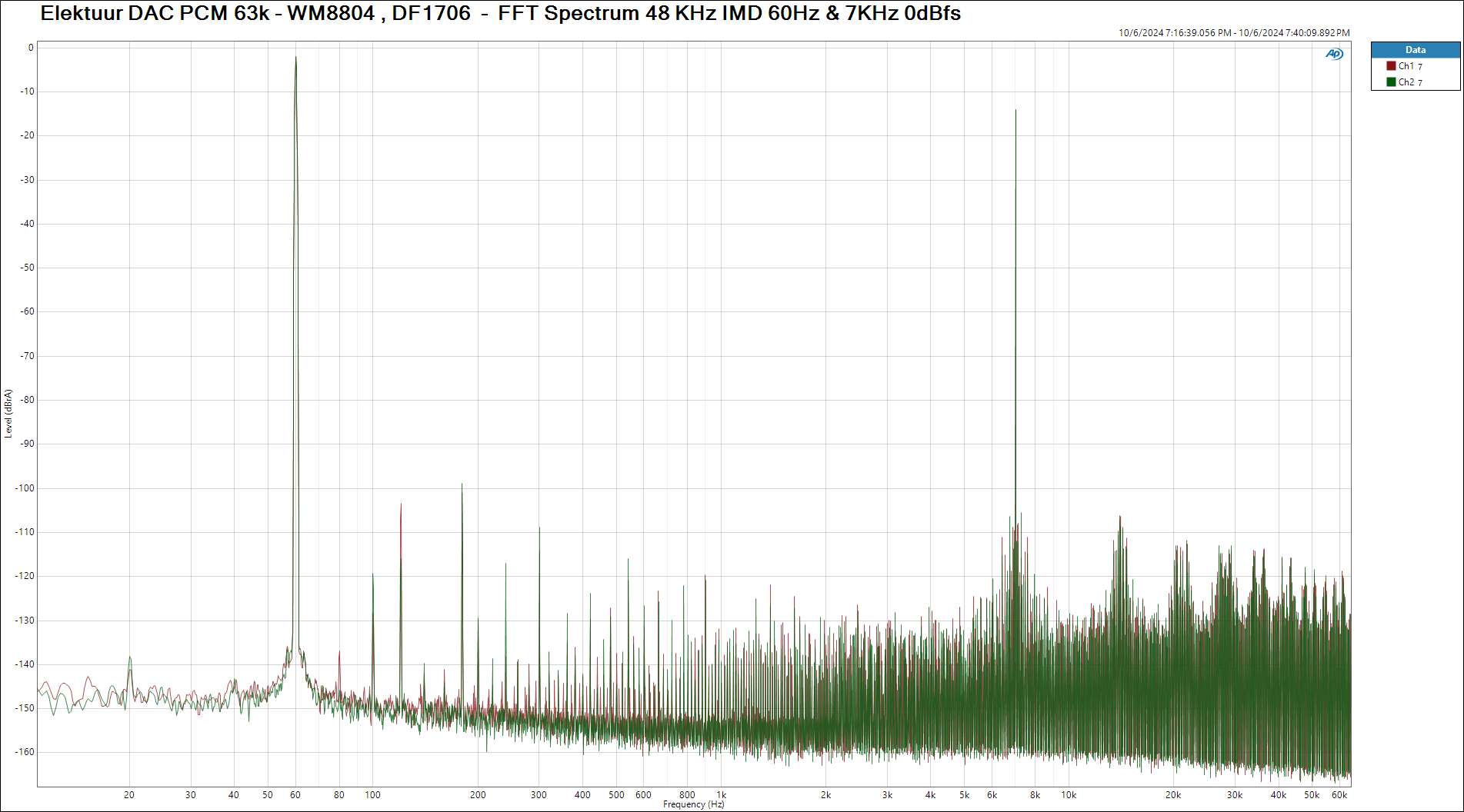

IMD 60 Hz * 7 KHz

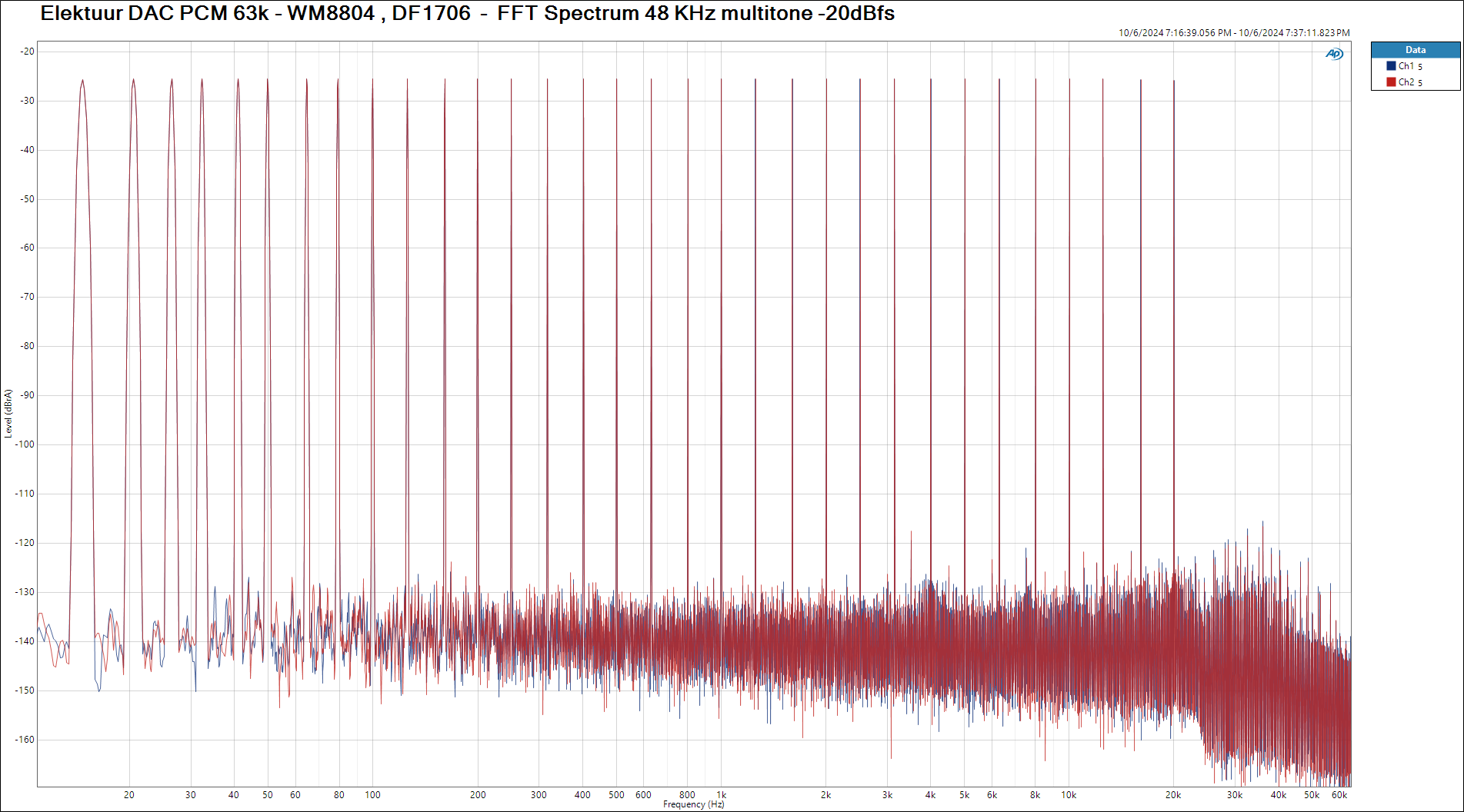

Multitone -20 dBFS

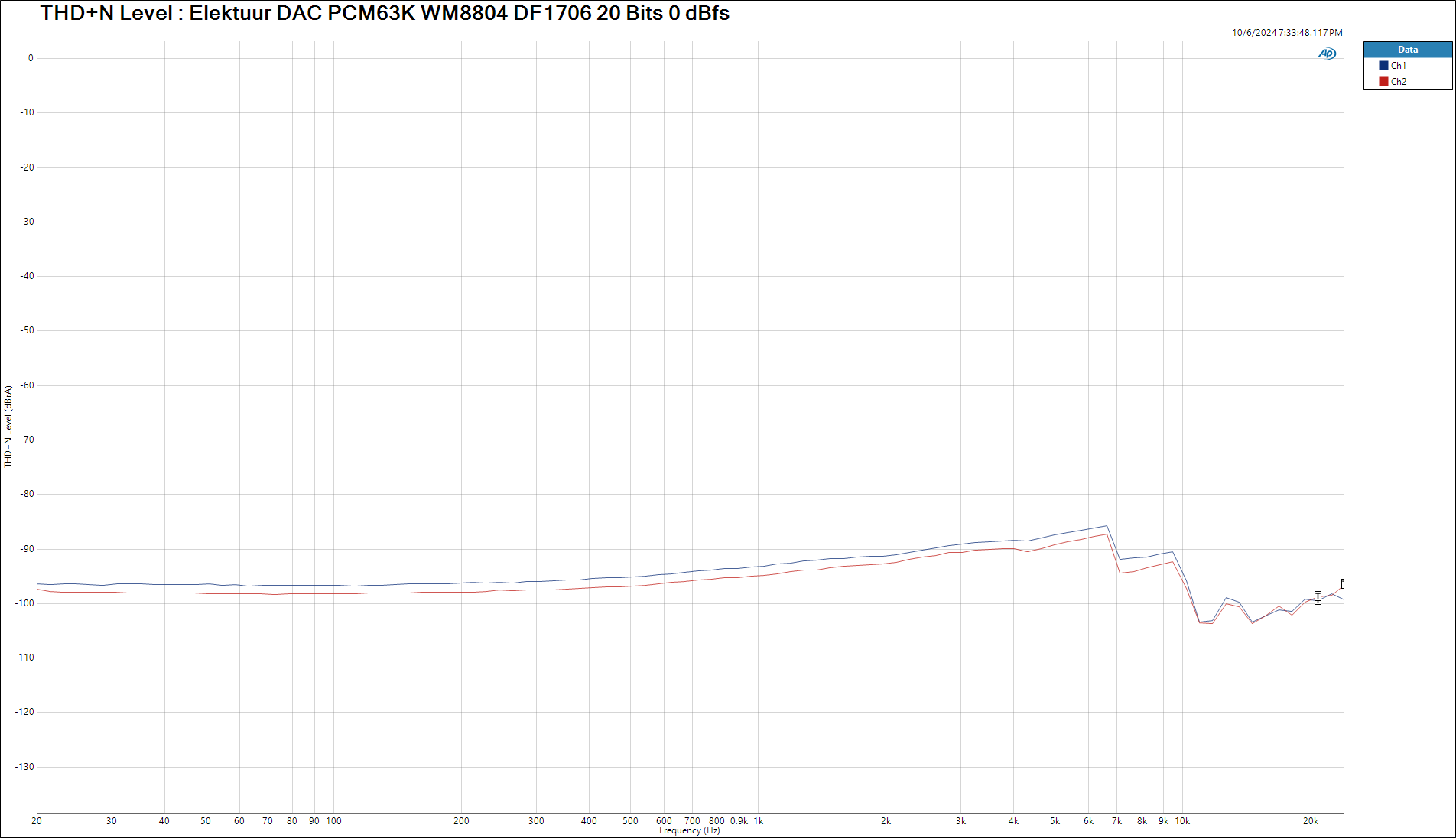

THD+Noise
