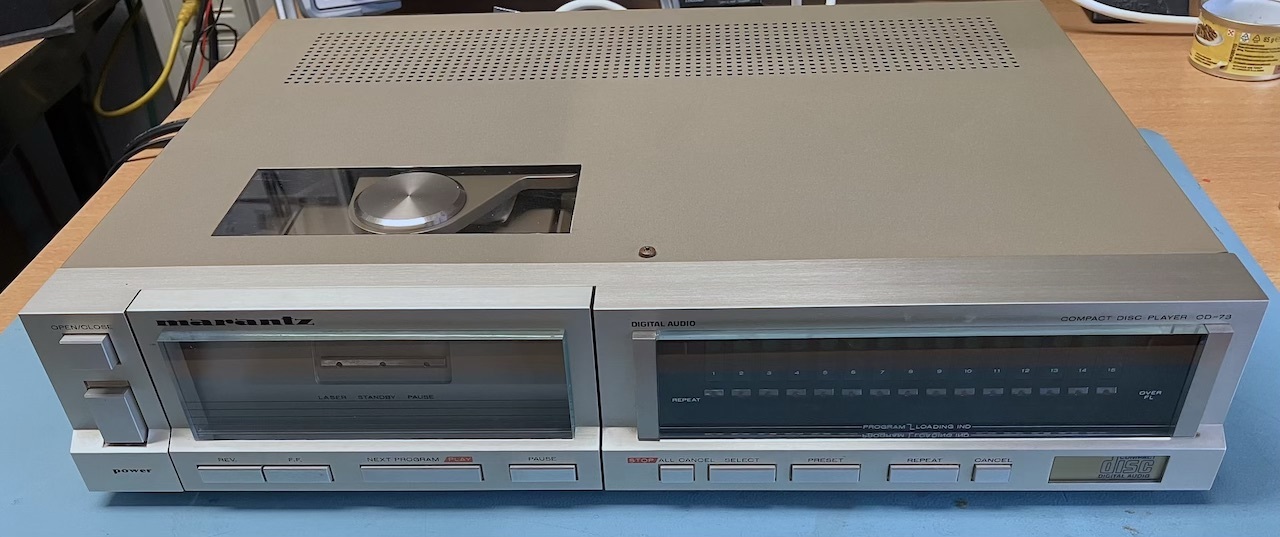

Marantz CD 73

CD 73 , Has trouble playing CD’s and some Leds are not working

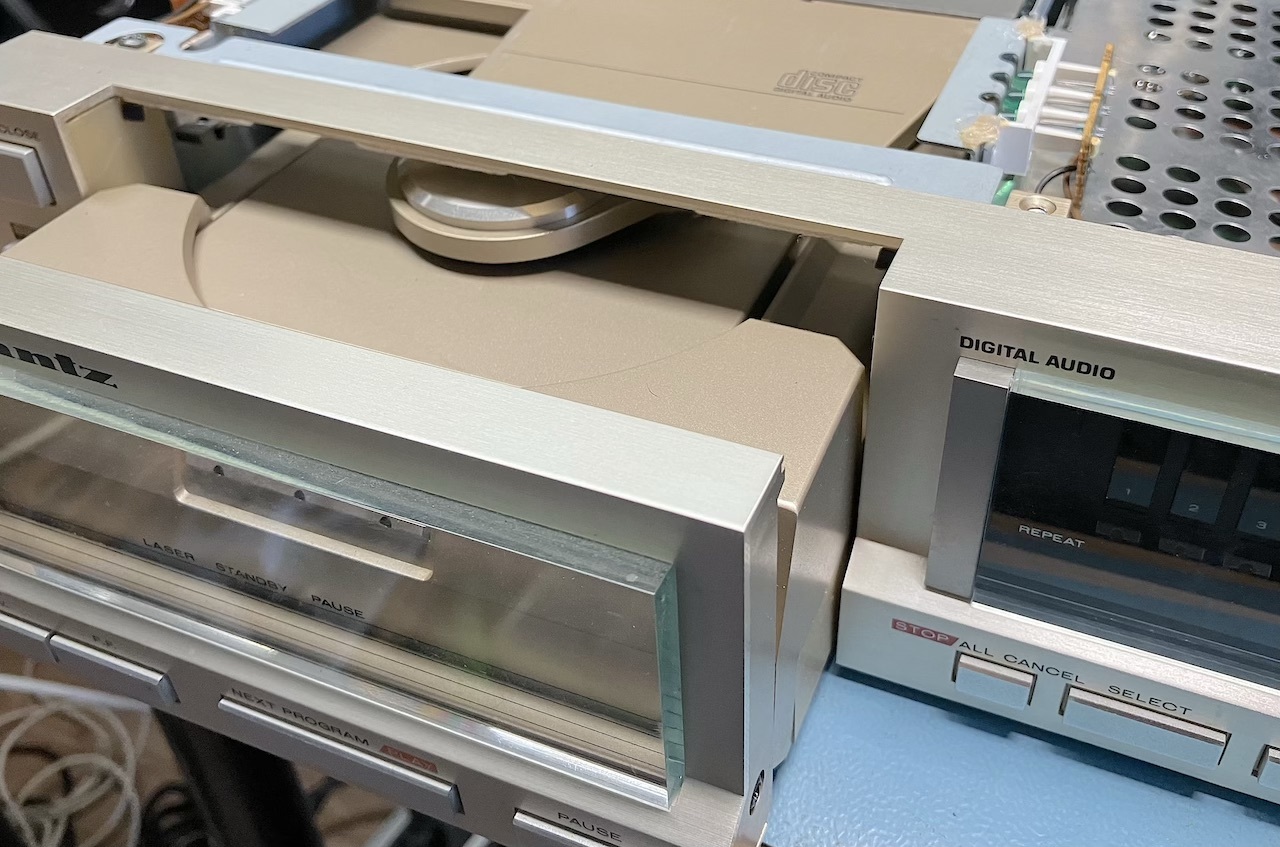

Tray want open

Flex cable locked by shield servo board

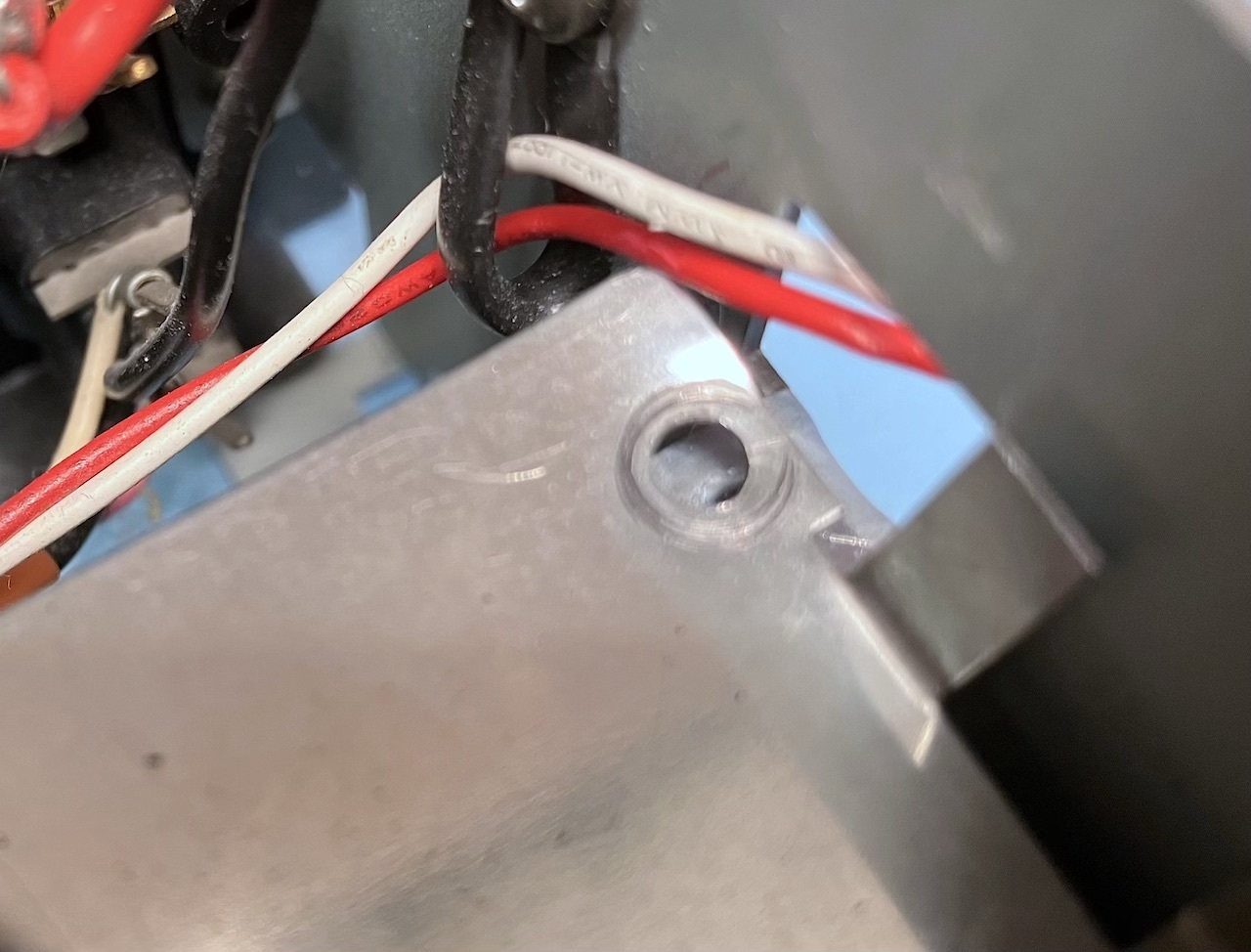

Missing screws

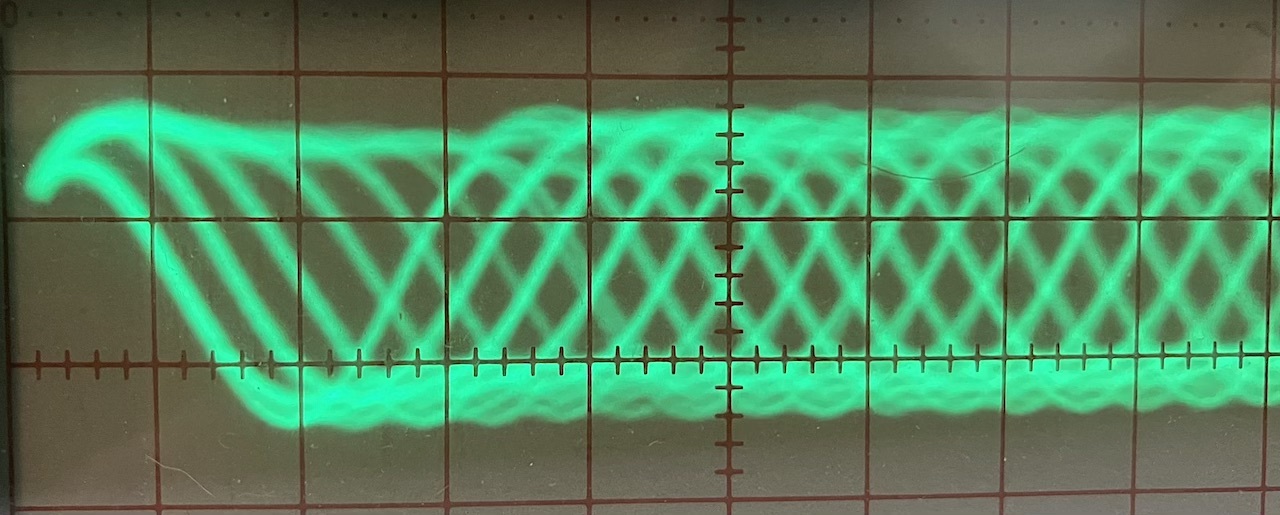

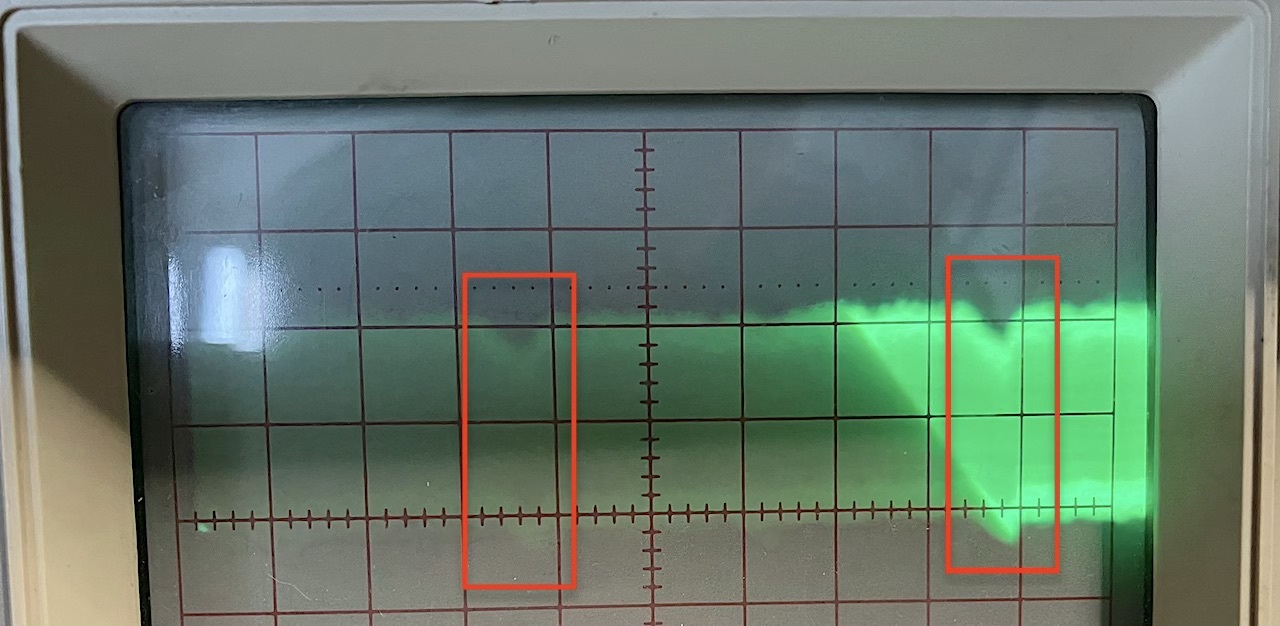

Hum in HF signal

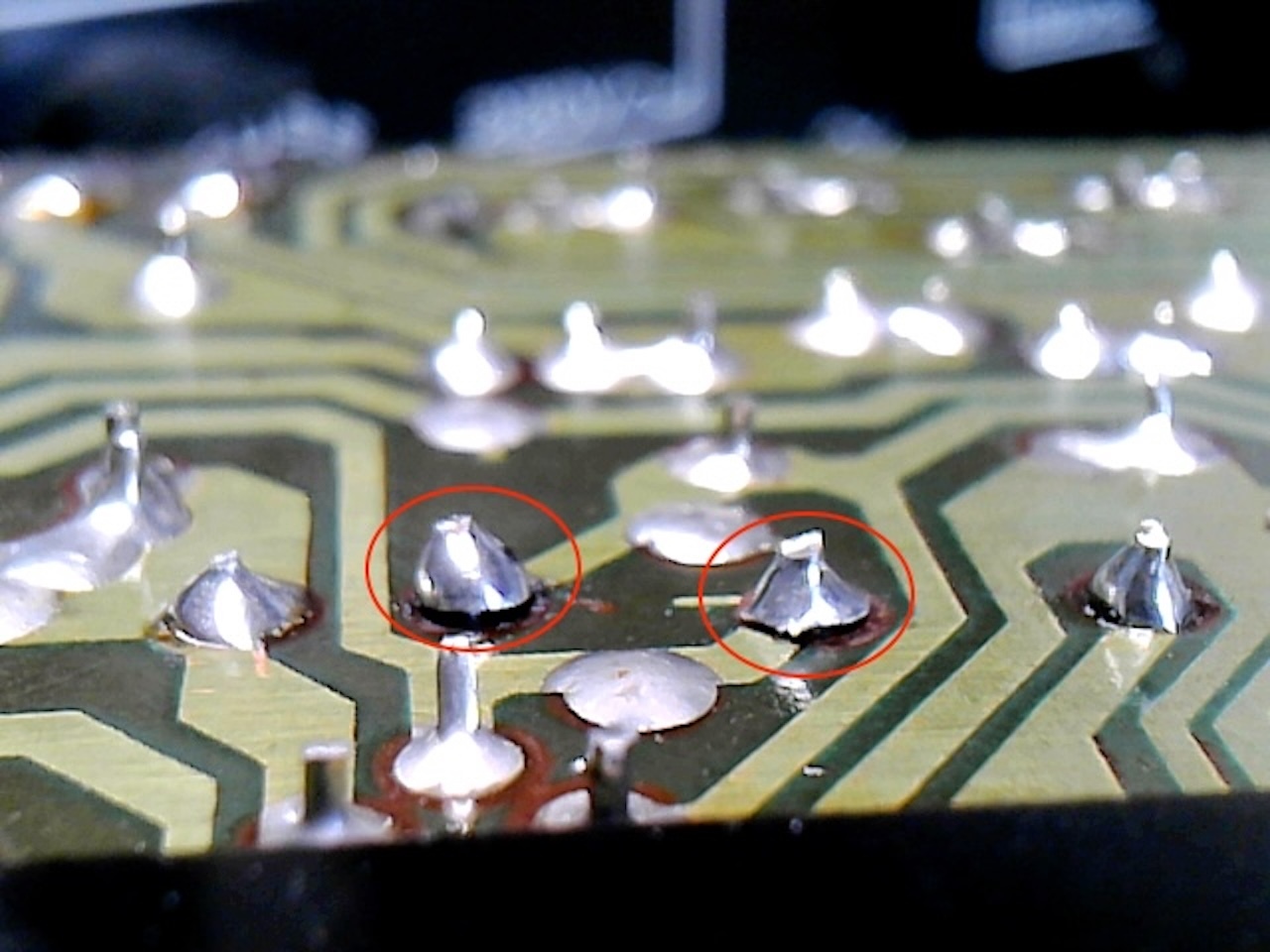

Powersupply Problems..

it’s playing again





Broken traces

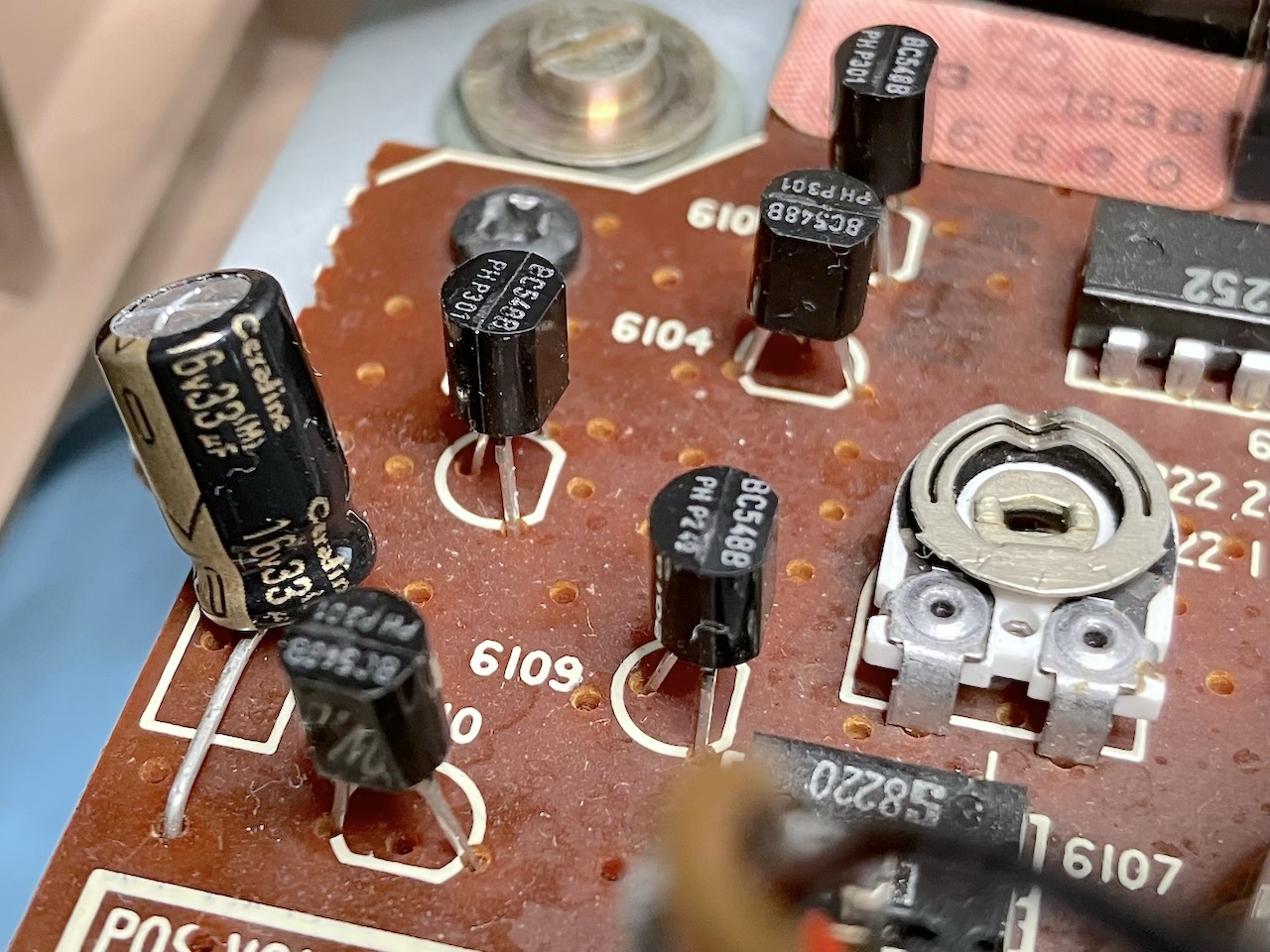

The right capacitor value 😉

Servo board not properly installed

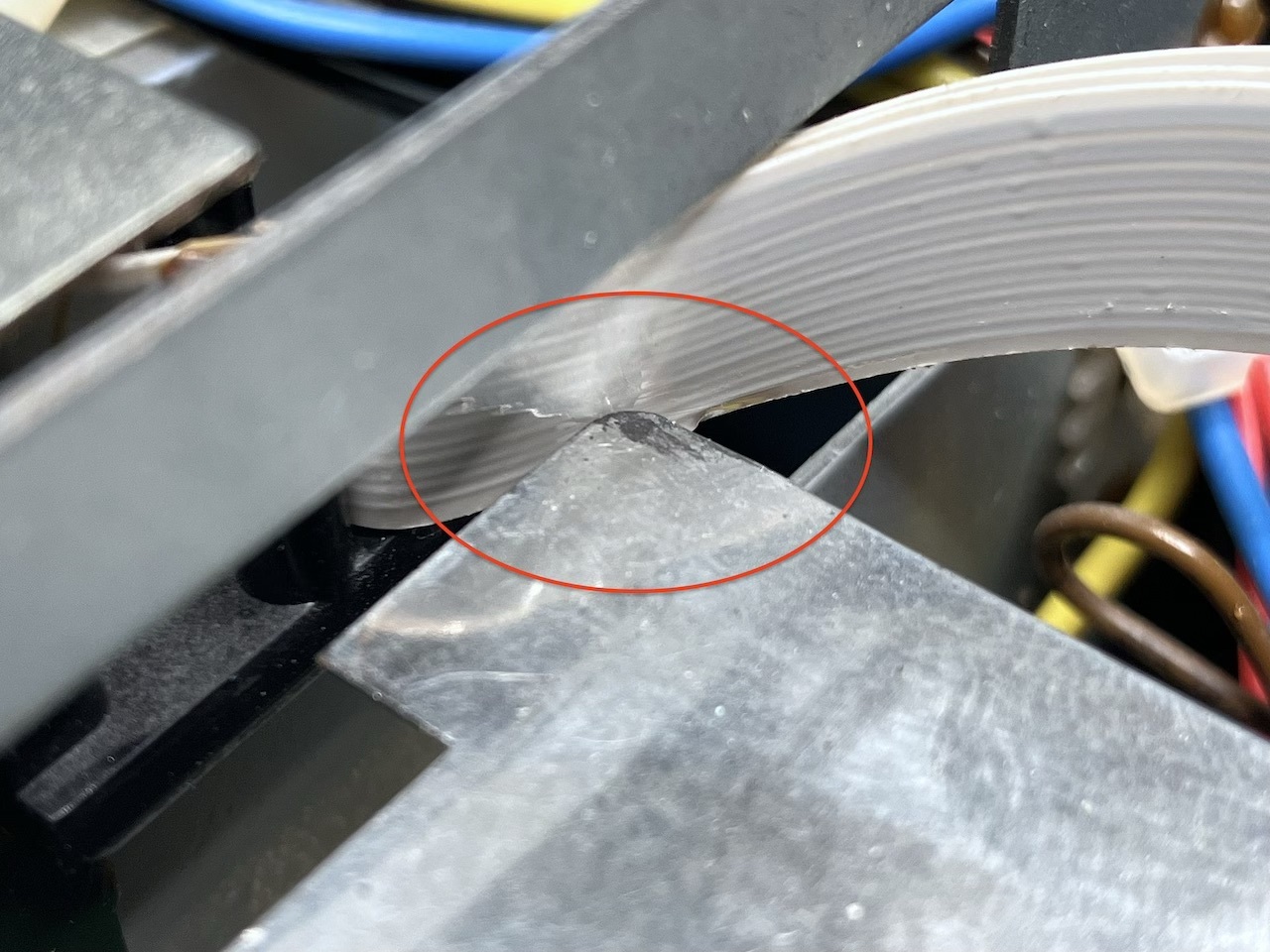

OMG, Short via Shielding



Broken wire on flatcable pin 1

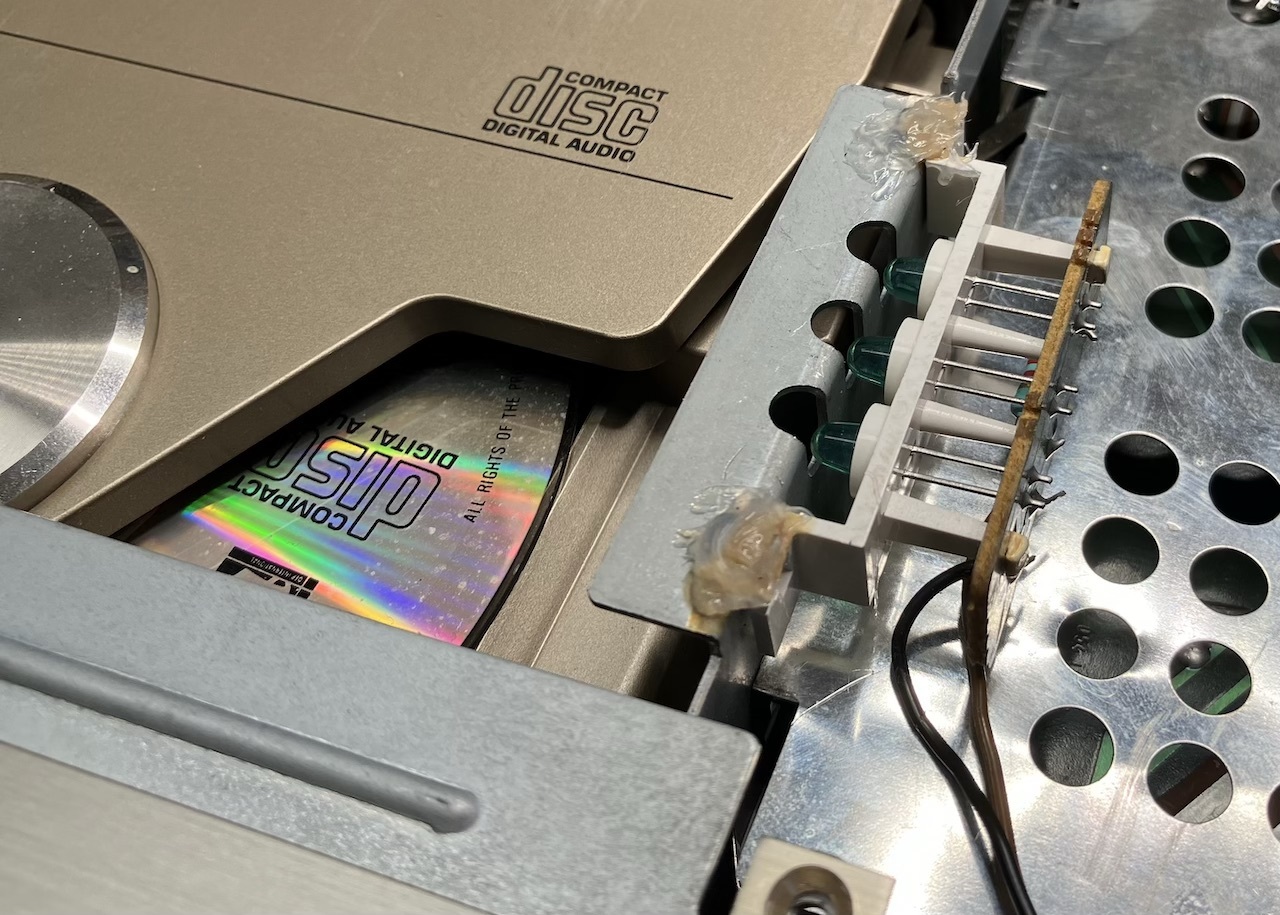

Leds working again

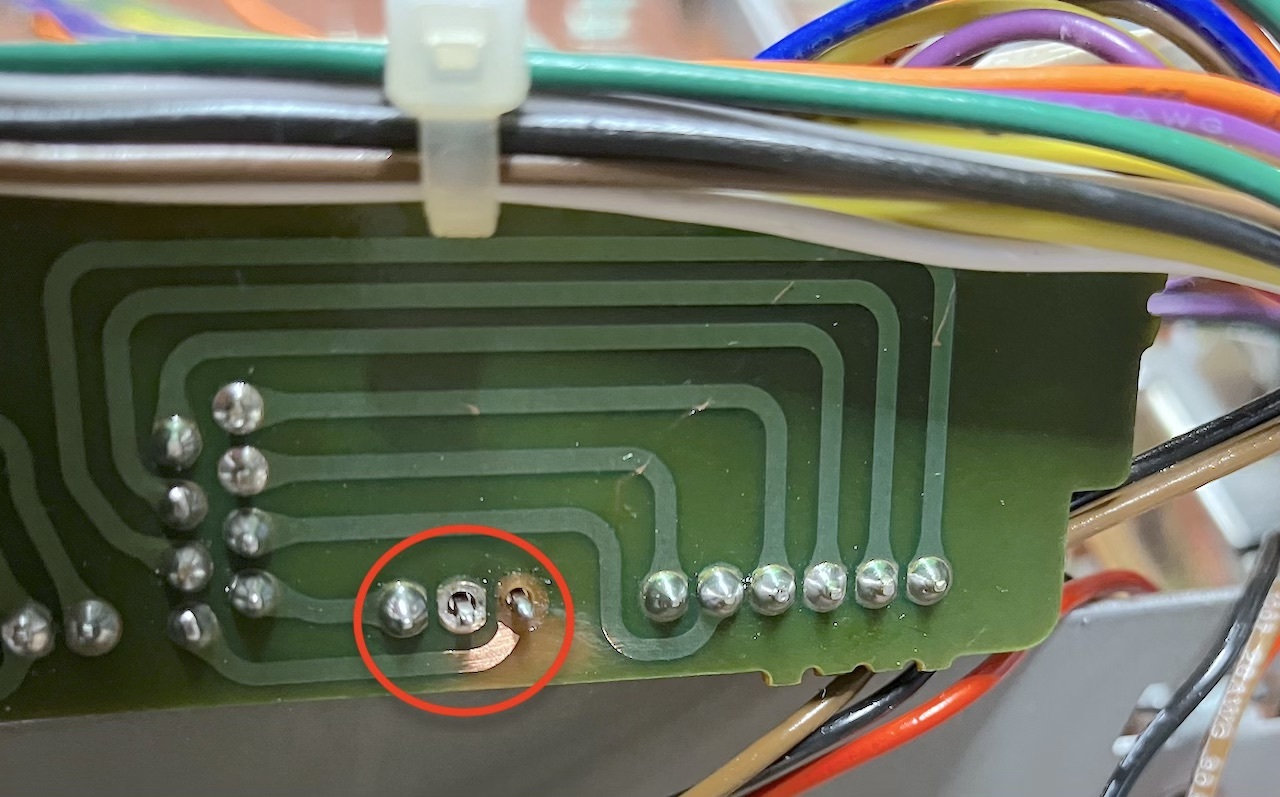

On interconnect board there is a broken solderpoint  ,

Still strange things going on also in servicemode ,

Audio grade capicitors on CDM board !?

Leads to short ?!

What happened here..?

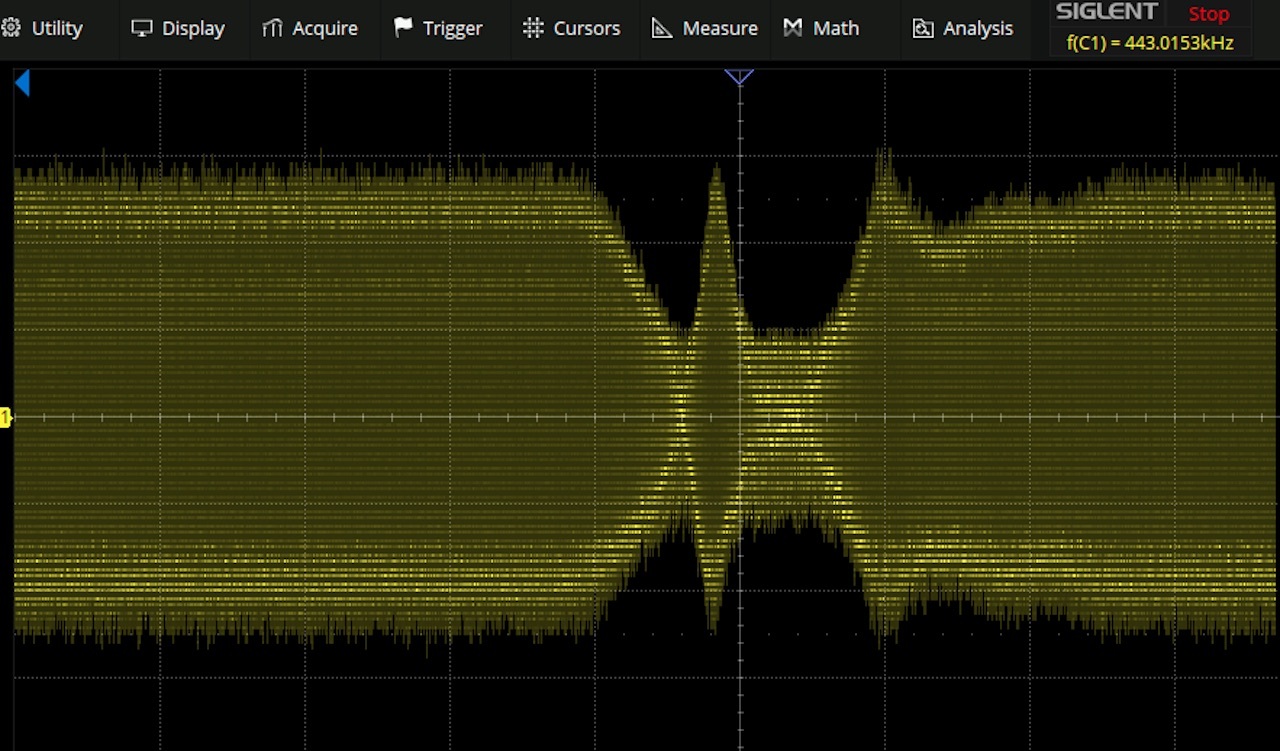

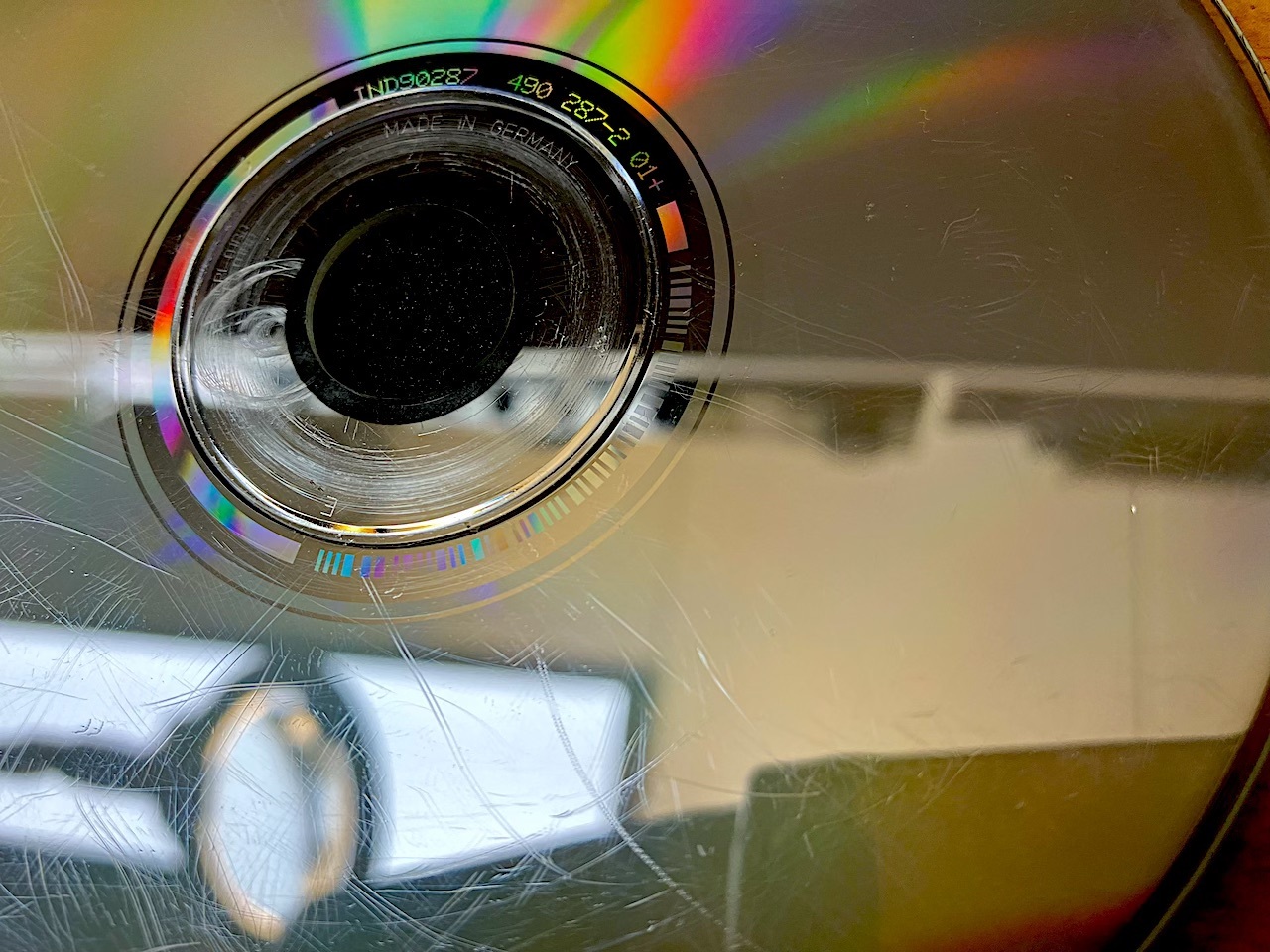

HF signal drops with some CD’s

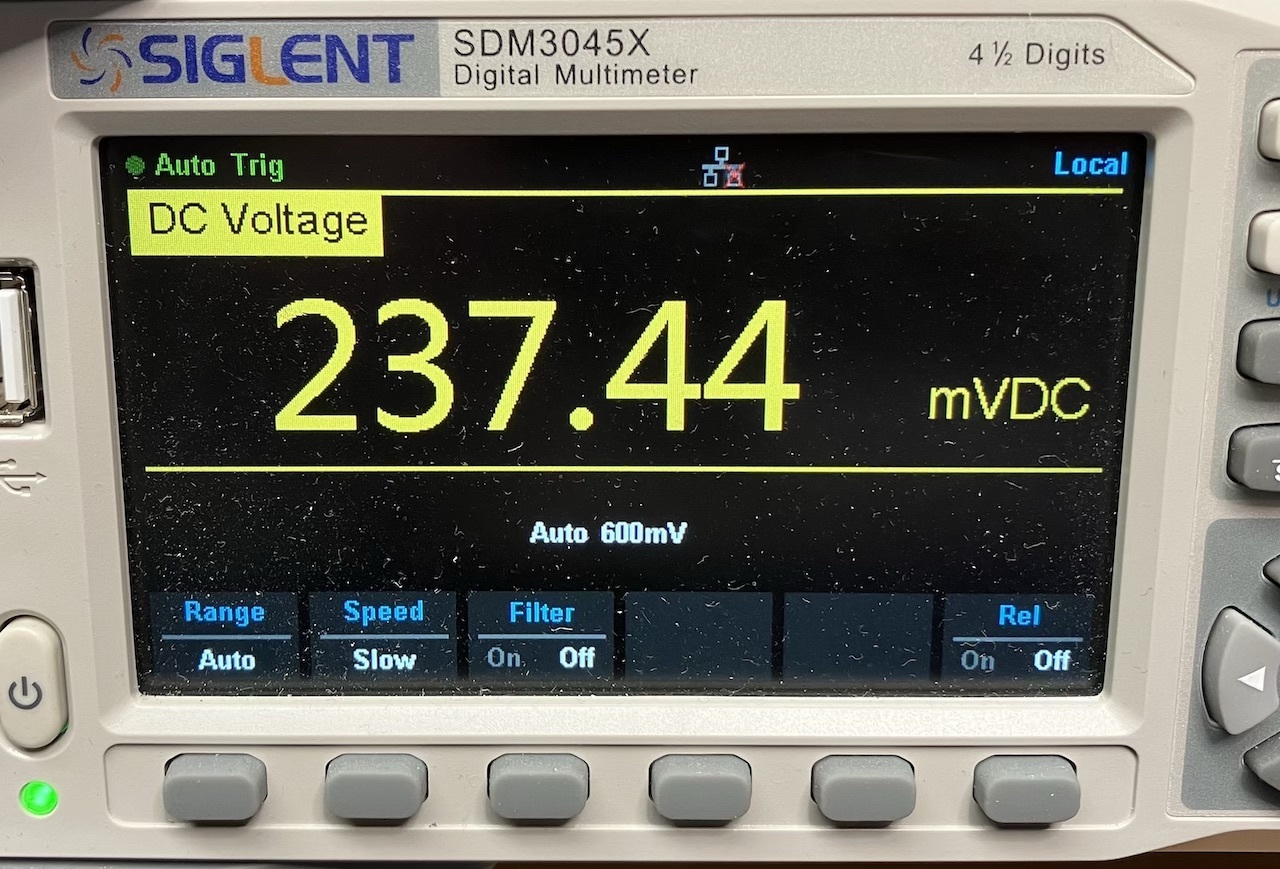

I think some has adjusted the disc height  must be around 0mV

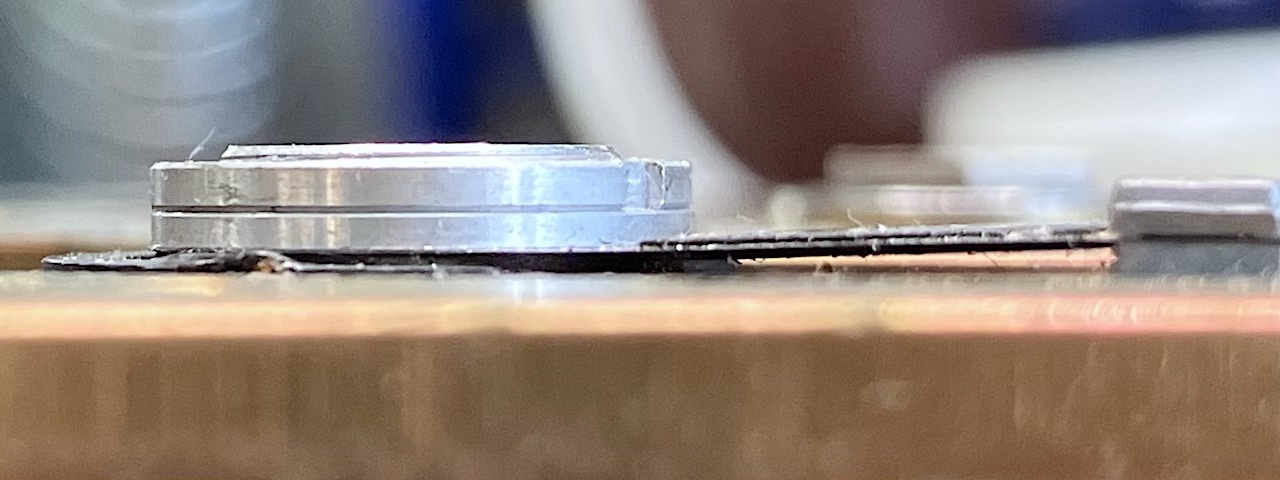

Focus Leaf-spring curved

And testen  again

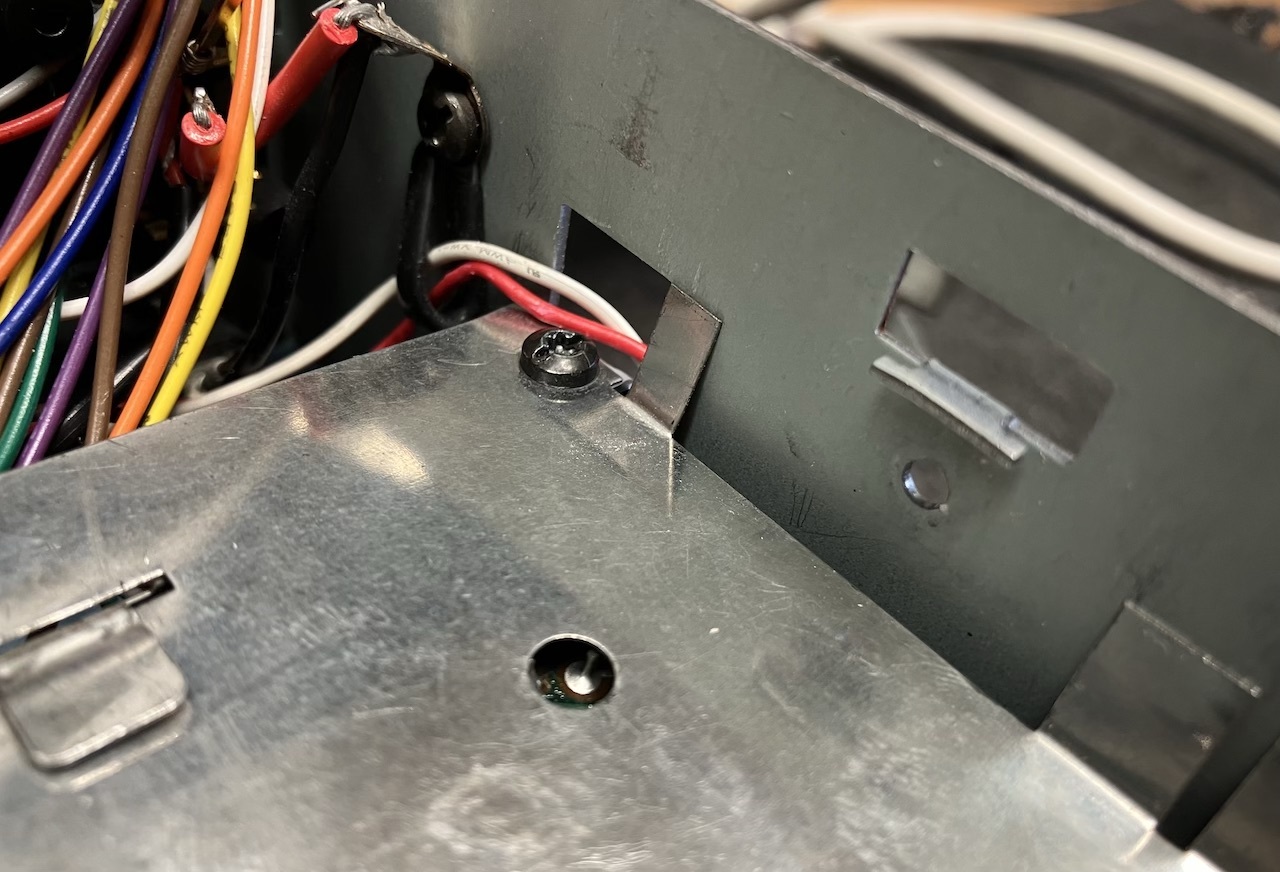

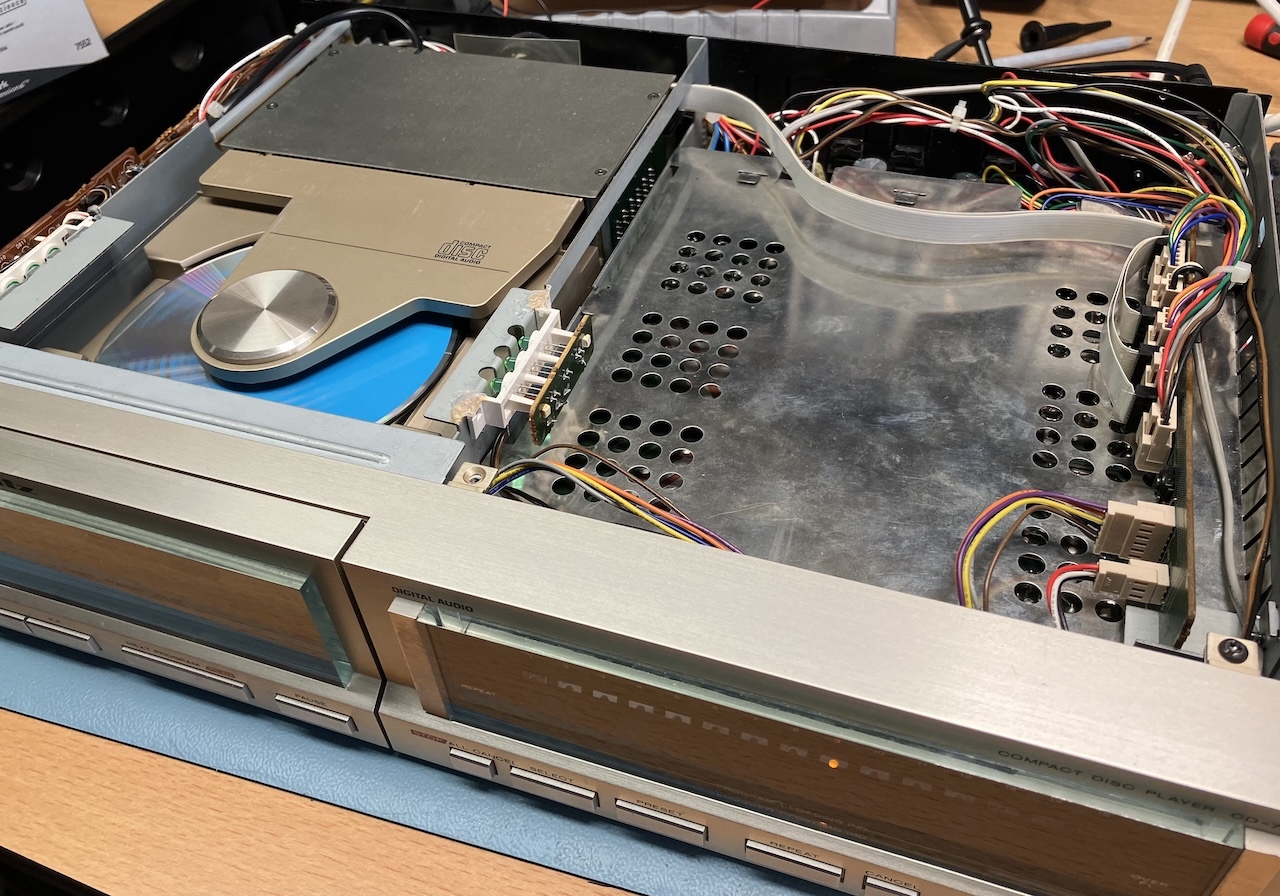

Mecanno Time







“unpacked it (from professional packaging) and all functions work perfectly!!! ,Thank you very much for your help and incredible patience in repairing this really difficult device.Thank you very much for the repair, another old CD player was born! You are fantastic!”
