CD100 start delay after reading T.O.C.

The Player reads the  TOC normal but it takes 10 secondes to start  the 1st Track, after the start track jumping is fast like i’m used by a D023 Processor

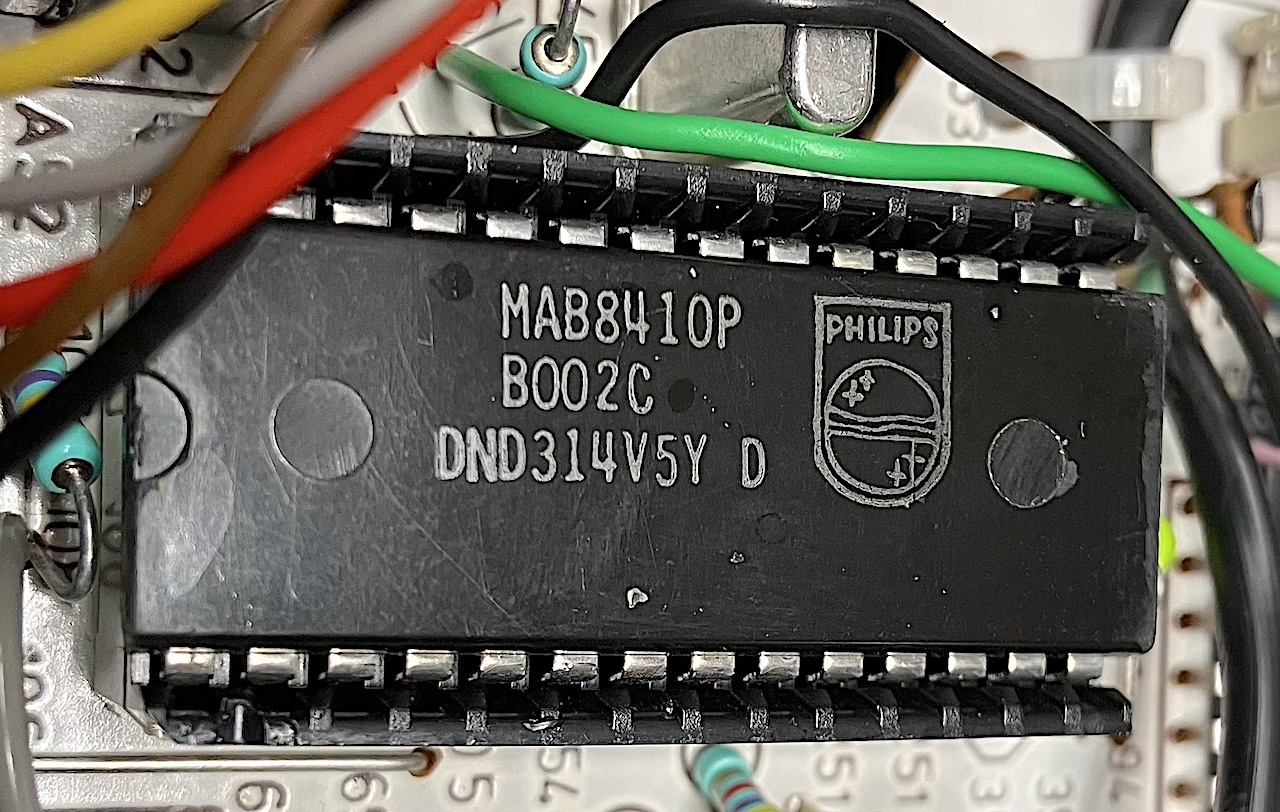

Here is the Problem A B002c Procesors this only works with C006 of D011 processors

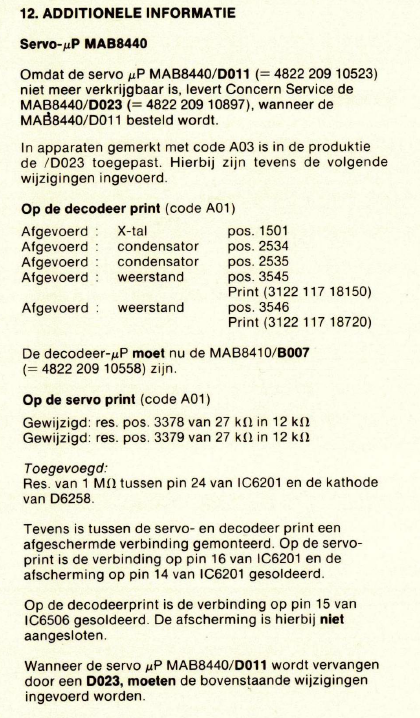

Some information from the service manual 😉

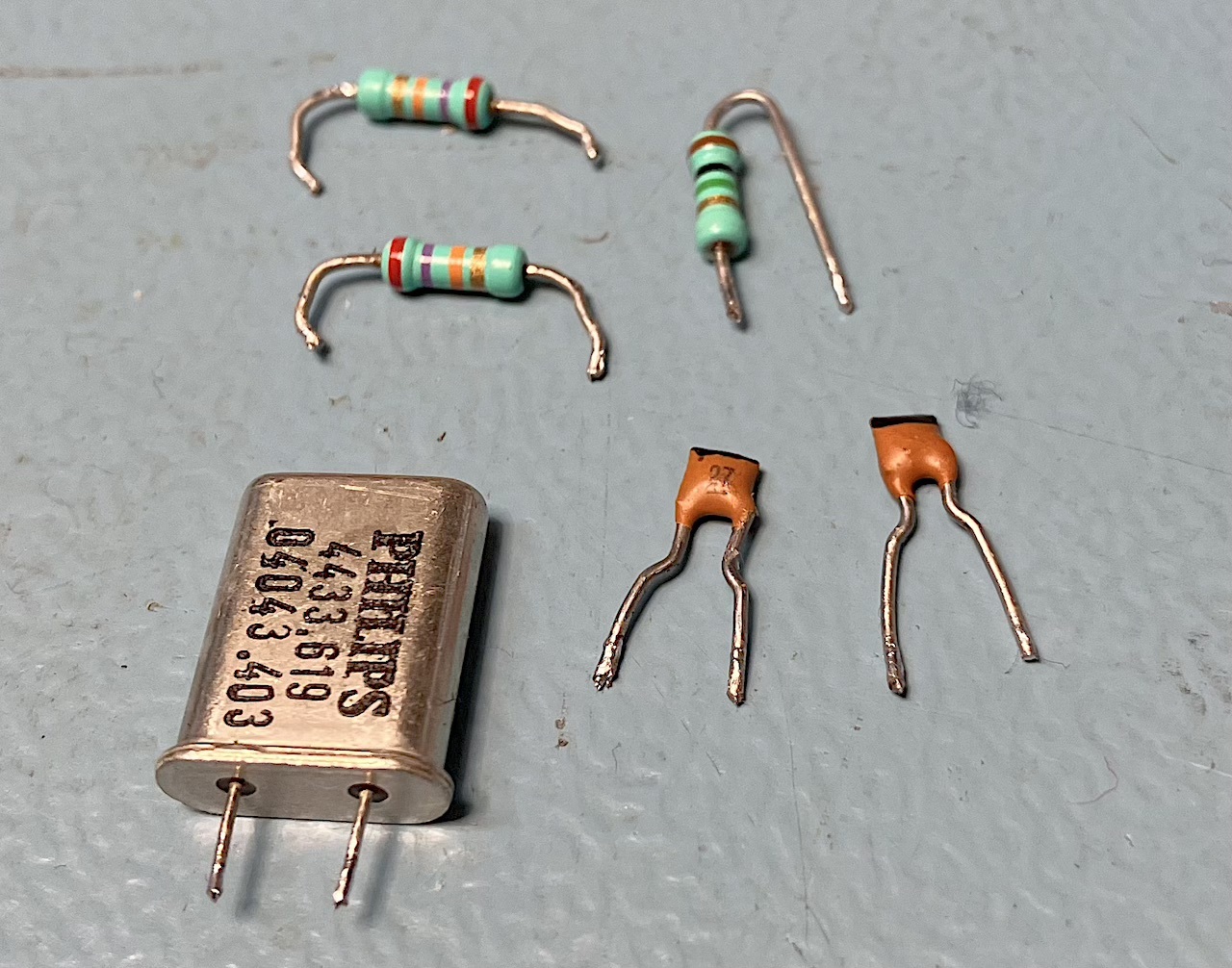

Swapped B002 for B007 and made the modification 🙂

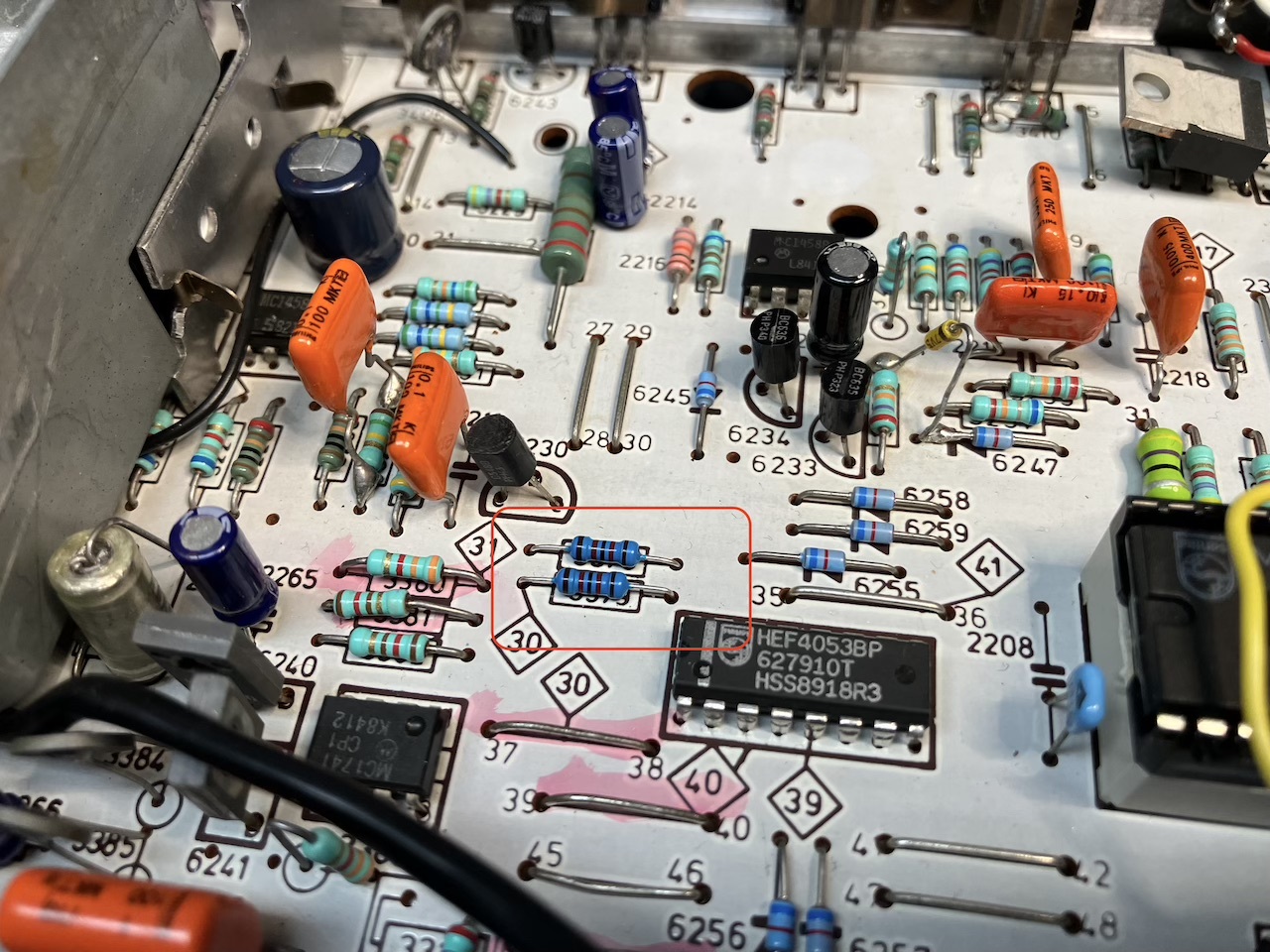

12k instead of 27k, the 1M is on solderside

Result

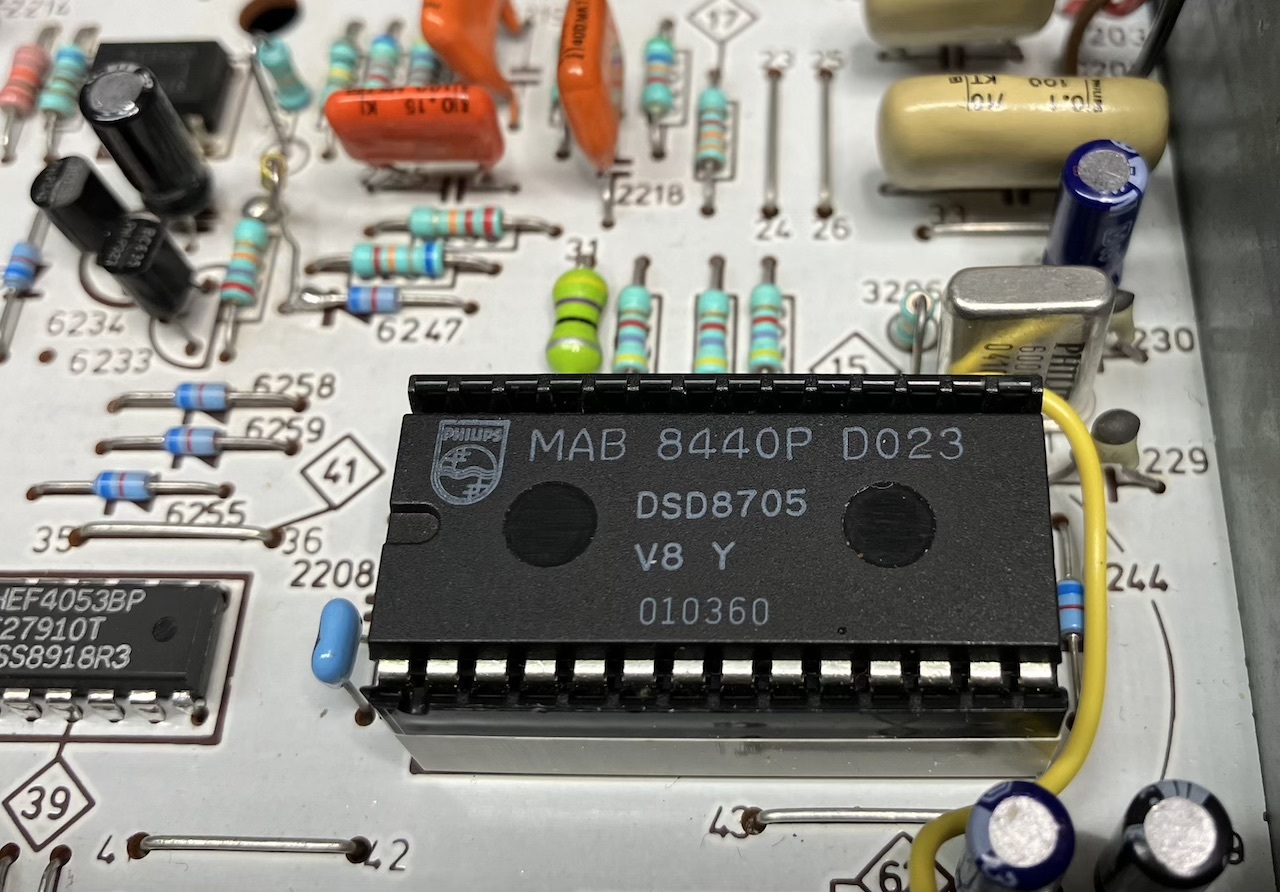

D023 with B002C : B002c

D23 Witch B007 : B007
